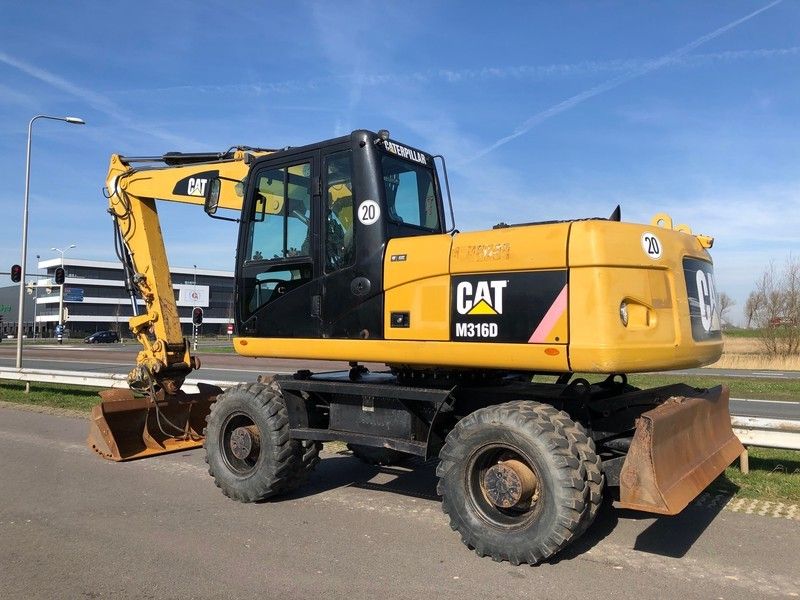

Caterpillar M316D
Browse All Caterpillar or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.06 ft in (8550 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 33.01 ft in (10060 mm) |
| Max Loading Height | 22.87 ft in (6970 mm) |
| Max Reach Along Ground | 29.24 ft in (8910 mm) |
| Max Vertical Wall Dig Depth | 12.14 ft in (3700 mm) |
| Max Digging Depth | 18.28 ft in (5570 mm) |
| Boom/Stick Option (Mex) 1 | Va Boom 5.2m / stick 2.1m |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 28.02 ft in (8540 mm) |
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Max Cutting Height | 34.13 ft in (10400 mm) |
| Max Loading Height | 24.02 ft in (7320 mm) |
| Max Reach Along Ground | 30.78 ft in (9380 mm) |
| Max Vertical Wall Dig Depth | 13.36 ft in (4070 mm) |
| Max Digging Depth | 19.92 ft in (6070 mm) |
| Boom/Stick Option (Mex) 2 | VA Boom 5.2m / stick 2.6m |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Shipping Length Of Unit | 27.53 ft in (8390 mm) |
| Max Cutting Height | 29.53 ft in (9000 mm) |
| Max Loading Height | 19.76 ft in (6020 mm) |
| Max Reach Along Ground | 28.58 ft in (8710 mm) |
| Max Vertical Wall Dig Depth | 11.46 ft in (3490 mm) |
| Max Digging Depth | 17.62 ft in (5370 mm) |
| Boom/Stick Option (Mex) 3 | One-piece Boom 5.05m / stick 2.1m |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.41 ft in (3170 mm) |
| Shipping Length Of Unit | 28.06 ft in (8550 mm) |
| Max Cutting Height | 32.68 ft in (9960 mm) |
| Max Loading Height | 23.46 ft in (7150 mm) |
| Max Reach Along Ground | 28.81 ft in (8780 mm) |
| Max Vertical Wall Dig Depth | 13.46 ft in (4100 mm) |
| Max Digging Depth | 17.89 ft in (5450 mm) |
| Boom/Stick Option (Mex) 4 | Offset Boom 5.2m / stick 2.1m |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 7.49 ft in (2280 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Overall Width - Outriggers Down | 12.54 ft in (3820 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Upper Structure Clearance | 4.2 ft in (1280 mm) |
Undercarriage
| Ground Clearance | 1.25 ft in (381 mm) |
| Minimum Turning Radius - Standard Axle - End Of Va Boom | 23 ft in (7.02 m) |
| Minimum Turning Radius - Wide Axle - End Of Va Boom | 23 ft in (7.02 m) |
| Minimum Turning Radius - Wide Axle - Outside Of Tire | 21 ft in (6.41 m) |
| Oscillation Axle Angle | 9 degrees |
| Minimum Turning Radius - Standard Axle - Outside Of Tire | 21 ft in (6.41 m) |
| Minimum Turning Radius - Wide Axle - End Of One-Piece Boom | 28 ft in (8.54 m) |
| Minimum Turning Radius - Standard Axle - End Of One-Piece Boom | 27 ft in (8.23 m) |
Engine
| Cylinders | 6 |
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C6.6 Acert |
| Gross Power | 166 hp (123.8 kw) |
| Net Power | 158 hp (117.9 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 403 cu in (6.7 L) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 579 lb ft (785 Nm) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 158 hp (117.9 kw) |
| Net Power - 80/1269/Eec | 158 hp (117.9 kw) |
| Engine Model | Cat C6.6 with ACERT Technology |
| Maximum Torque - 1,400 Rpm | 579 lb ft (785.1 Nm) |
| Ratings | 1800 rpm |
| Net Power - 1,800 Rpm - Iso 9249 | 158 hp (117.9 kw) |
Operational
| Operating Weight | 42769.7 lb (19400 kg) |
| Fuel Capacity | 81.9 gal (310 L) |
| Cooling System Fluid Capacity | 8.5 gal (32 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Front Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Rear Diff Fluid Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Alternator Supplied Amperage | 75 amps |
| Hydraulic System Relief Valve Pressure | 5076 psi (34997.8 kPa) |
| Hydraulic Pump Type | Piston |
| Hydraulic Pump Flow Capacity | 66.1 gal/min (250 L/min) |
| Oscillating Axle Angle | 9 degrees |
| Max Steering Angle | 35 degrees |
| Tire Size | 10.00-20 16PR, dual |
Swing Mechanism
| Swing Speed | 10.5 rpm |
| Swing Torque | 29502 lb ft (39999.4 Nm) |
Transmission
| Transmission Type | gear |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 23 mph (37.1 km/h) |
| Drawbar Pull | 21806 lb (9891.1 kg) |
| Creeper Speed - 2nd Gear | 8 mph (12.9 km/h) |
| Forward/Reverse - 1st Gear | 5 mph (8.1 km/h) |
| Creeper Speed - 1st Gear | 2 mph (3.3 km/h) |
| Forward/Reverse - 2nd Gear | 23 mph (37.1 km/h) |
| Maximum Gradeability | 63% |
Tires
| Standard | 1) 10.00-20 (dual pneumatic) |
| Optional | 1) 11.00-20 (dual pneumatic) 2) 18 R 19.5 XF (single pneumatic) 3) 10.00-20 (dual solid rubber) |
Weights
| Counterweights - Standard | 8157 lb (3700 kg) |
| Counterweights - Optional | 9039 lb (4100.1 kg) |
| Dozer Blade | 1700 lb (771.2 kg) |
| Outriggers | 2270 lb (1029.7 kg) |
| Va Boom* - Rear Dozer Only | 36707 lb (16650.1 kg) |
| Va Boom* - Rear Dozer, Front Outriggers | 38912 lb (17650.2 kg) |
| Va Boom* - Front And Rear Outriggers | 39352 lb (17849.8 kg) |
| Sticks - Short (2100 Mm) | 1036 lb (470 kg) |
| Sticks - Medium (2400 Mm) | 1133 lb (514 kg) |
| One-Piece Boom* - Rear Dozer Only | 35605 lb (16150.2 kg) |
| Sticks - Long (2600 Mm) | 1168 lb (529.8 kg) |
| Offset Boom* - Front And Rear Outriggers | 40455 lb (18350.1 kg) |
| Offset Boom* - Rear Dozer Only | 37809 lb (17149.9 kg) |
| Offset Boom* - Rear Dozer, Front Outriggers | 40014 lb (18150.1 kg) |
| One-Piece Boom* - Front And Rear Outriggers | 38250 lb (17350 kg) |
| One-Piece Boom* - Rear Dozer, Front Outriggers | 37809 lb (17149.9 kg) |
| Sticks - Industrial (3100 Mm) | 992 lb (450 kg) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.2 m3) |
Hydraulic System
| System | 61 gal (US) |
| Tank Capacity | 36 gal (136.3 L) |
| Maximum Pressure - Auxiliary Circuit - High Pressure | 5076 psi |
| Maximum Pressure - Implement Circuit - Normal | 5076 psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5439 psi |
| Maximum Pressure - Auxiliary Circuit - Medium Pressure | 2683 psi |
| Maximum Pressure - Travel Circuit | 5076 psi |
| Maximum Flow - Implement/Travel Circuit | 66 gal/min |
| Maximum Flow - Swing Mechanism | 21 gal/min |
| Maximum Flow - Auxiliary Circuit - High Pressure | 66 gal/min |
| Maximum Flow - Auxiliary Circuit - Medium Pressure | 13 gal/min |
| Maximum Pressure - Swing Mechanism | 5366 psi |
Service Refill Capacities
| Fuel Tank | 82 gal (310.5 L) |
| Engine Crankcase | 4 gal (15.2 L) |
| Final Drive | 0.7 gal (2.7 L) |
| Powershift Transmission | 0.7 gal (2.7 L) |
| Front Steering Axle - Differential | 2.8 gal (10.6 L) |
| Rear Axle - Housing (Differential) | 3.7 gal (14.1 L) |
| Cooling | 9.5 gal (36 L) |
Drive
| Maximum Travel Speed | 23 mph (37.1 km/h) |
Sound Levels
| Exterior Sound | Exterior Sound |
Working Ranges
| Maximum Digging Depth | 20 ft in (6.1 m) |
| Maximum Reach - Ground Level | 30.8 ft in (9.4 m) |
Bucket Specifications
| Bucket Capacities | 0.38 to 1.26 m3 (0.5 to 1.65 yd3) |
Cab/Rops/Fogs
| Standards | Standards |
