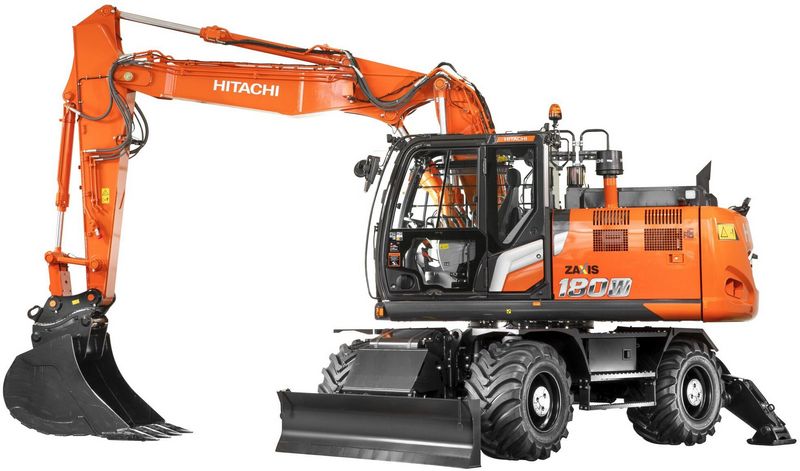

Hitachi ZX180W
Browse All Hitachi or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 29.53 ft in (9000 mm) |
| Shipping Height Of Unit | 10.27 ft in (3130 mm) |
| Max Cutting Height | 30.12 ft in (9180 mm) |
| Max Loading Height | 20.94 ft in (6380 mm) |
| Max Reach Along Ground | 29.43 ft in (8970 mm) |
| Max Vertical Wall Dig Depth | 15.65 ft in (4770 mm) |
| Max Digging Depth | 17.52 ft in (5340 mm) |
| Boom/Stick Option (Mex) 1 | boom w/ arm 2250mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 30.75 ft in (9370 mm) |
| Shipping Height Of Unit | 10.18 ft in (3100 mm) |
| Max Cutting Height | 30.42 ft in (9270 mm) |
| Max Loading Height | 21.3 ft in (6490 mm) |
| Max Reach Along Ground | 30.65 ft in (9340 mm) |
| Max Vertical Wall Dig Depth | 17.1 ft in (5210 mm) |
| Max Digging Depth | 19 ft in (5790 mm) |
| Boom/Stick Option (Mex) 2 | boom w/ arm 2700mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 11.19 ft in (3410 mm) |
| Shipping Length Of Unit | 30.75 ft in (9370 mm) |
| Max Cutting Height | 31.67 ft in (9650 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Max Reach Along Ground | 32.35 ft in (9860 mm) |
| Max Vertical Wall Dig Depth | 18.74 ft in (5710 mm) |
| Max Digging Depth | 20.64 ft in (6290 mm) |
| Boom/Stick Option (Mex) 3 | boom w/ arm 3200mm |
Dimensions
| Wheelbase | 8.7 ft in (2650 mm) |
| Tail Swing Radius | 8.01 ft in (2440 mm) |
| Overall Width | 8.31 in (2530 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Overall Width - Outriggers Down | 12.14 ft in (3700 mm) |
| Height To Top Of Cab | 10.11 ft in (3080 mm) |
| Upper Structure Clearance | 4.17 ft in (1270 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | 4BG1XABF |
| Net Power | 121 hp (90.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 264.2 cu in (4.4 L) |
| Torque Measured @ | 1800 rpm |
| Net Torque | 329.7 lb ft (447 Nm) |
| Aspiration | turbocharged, intercooled |
Operational
| Operating Weight | 41447 lb (18800 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Cooling System Fluid Capacity | 5.1 gal (19.2 L) |
| Engine Oil Capacity | 4.2 gal (15.8 L) |
| Front Diff Fluid Capacity | 2.3 gal (8.5 L) |
| Rear Diff Fluid Capacity | 3 gal (11 L) |
| Hydraulic System Fluid Capacity | 71.4 gal (270 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Type | 2 variable displacement axial piston pumps |
| Hydraulic Pump Flow Capacity | 105.7 gal/min (400 L/min) |
| Oscillating Axle Angle | 12 degrees |
Swing Mechanism
| Swing Speed | 12.8 rpm |
Transmission
| Transmission Type | 2-gear powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 18.7 mph (30 km/h) |
