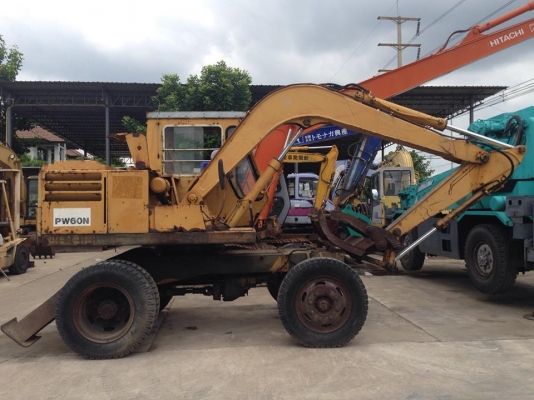

Komatsu PW60N-1
Browse All Komatsu or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 18.38 ft in (5600 mm) |
| Shipping Height Of Unit | 11.16 ft in (3400 mm) |
| Max Cutting Height | 18.21 ft in (5550 mm) |
| Max Loading Height | 12.24 ft in (3730 mm) |
| Max Reach Along Ground | 19.44 ft in (5925 mm) |
| Max Vertical Wall Dig Depth | 8.76 ft in (2670 mm) |
| Max Digging Depth | 11.42 ft in (3480 mm) |
| Boom/Stick Option (Mex) 1 | Boom 11'8" (3560mm)/Stick 5'5" (1650mm) |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 18.74 ft in (5710 mm) |
| Max Loading Height | 12.73 ft in (3880 mm) |
| Max Reach Along Ground | 21.04 ft in (6410 mm) |
| Max Vertical Wall Dig Depth | 10.34 ft in (3150 mm) |
| Max Digging Depth | 13.06 ft in (3980 mm) |
| Boom/Stick Option (Mex) 2 | Boom 11'8" (3560mm)/Stick 7'1" (2150mm) |
Boom/Stick Option (Mex) 3
| Max Cutting Height | 18.84 ft in (5740 mm) |
| Max Loading Height | 12.83 ft in (3910 mm) |
| Max Reach Along Ground | 21.07 ft in (6420 mm) |
| Max Vertical Wall Dig Depth | 10.37 ft in (3160 mm) |
| Max Digging Depth | 13.06 ft in (3980 mm) |
| Boom/Stick Option (Mex) 3 | Boom 11'8" (3560mm)/Stick 5'5" (1650mm) with 2'6" (763mm) extension arm |
Dimensions
| Wheelbase | 7.22 ft in (2200 mm) |
| Overall Width | 7.53 in (2295 mm) |
| Ground Clearance | 0.81 ft in (245 mm) |
| Height To Top Of Cab | 8.98 ft in (2735 mm) |
| Upper Structure Clearance | 3.61 ft in (1100 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | 4D94-2 |
| Gross Power | 50 hp (37.3 kw) |
| Displacement | 179.5 cu in (3 L) |
| Net Torque | 124.4 lb ft (168.6 Nm) |
Operational
| Hydraulic System Relief Valve Pressure | 2490 psi (17168 kPa) |
| Hydraulic Pump Type | 2x gear pump |
| Hydraulic Pump Flow Capacity | 34.9 gal/min (132 L/min) |
Transmission
| Max Travel Speed | 12.5 mph (20 km/h) |
