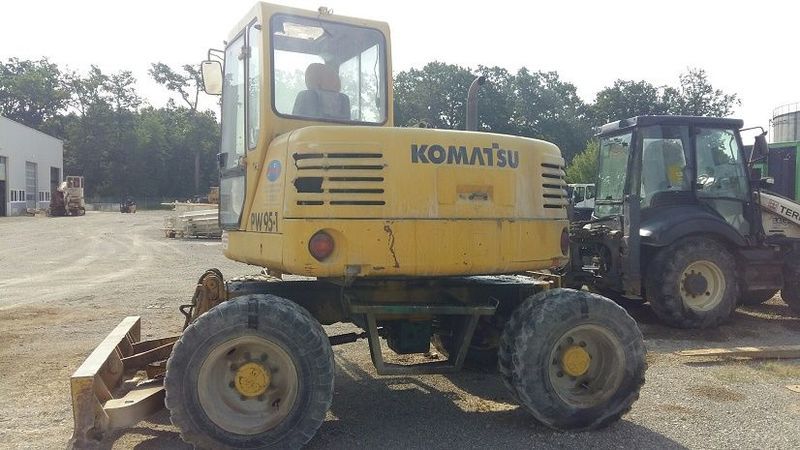

Komatsu PW95-1
Browse All Komatsu or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 20.02 ft in (6100 mm) |
| Shipping Height Of Unit | 13 ft in (3960 mm) |
| Max Cutting Height | 21.04 ft in (6410 mm) |
| Max Loading Height | 14.57 ft in (4440 mm) |
| Max Reach Along Ground | 20.76 ft in (6325 mm) |
| Max Digging Depth | 11.19 ft in (3410 mm) |
| Boom/Stick Option (Mex) 1 | Boom 9'8" (2950mm)/Stick 5'3" (1600mm) |
Dimensions
| Wheelbase | 7.22 ft in (2200 mm) |
| Tail Swing Radius | 4.93 ft in (1500 mm) |
| Overall Width | 7.59 in (2312 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Height To Top Of Cab | 9.78 ft in (2980 mm) |
| Upper Structure Clearance | 3.61 ft in (1100 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1004.4 |
| Gross Power | 75.1 hp (56 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 243.5 cu in (4 L) |
Operational
| Fuel Capacity | 37 gal (140 L) |
| Operating Weight | 20172.3 lb (9150 kg) |
| Hydraulic System Fluid Capacity | 21.7 gal (82 L) |
| Hydraulic System Relief Valve Pressure | 4980 psi (34335.9 kPa) |
| Hydraulic Pump Flow Capacity | 62.9 gal/min (238 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 19.9 mph (32 km/h) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
