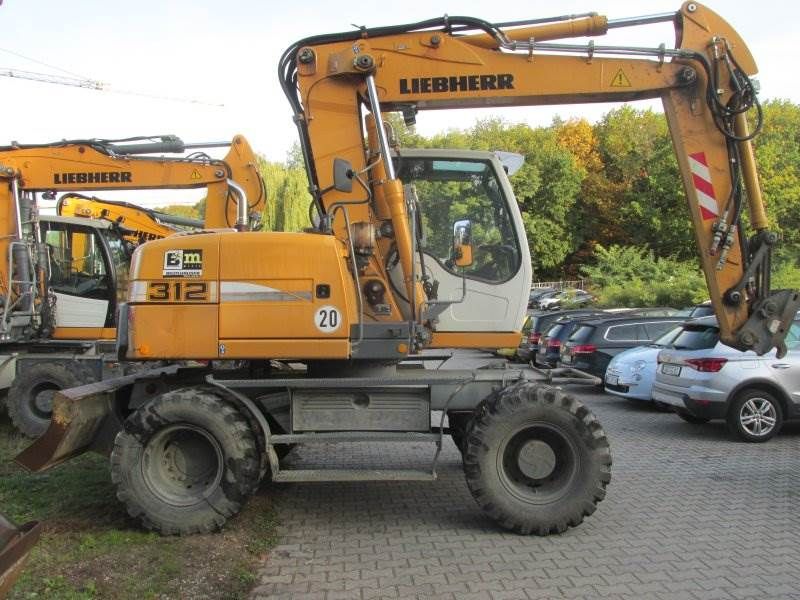

Liebherr A312
Browse All Liebherr or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 26.58 ft in (8100 mm) |
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Max Cutting Height | 31.34 ft in (9550 mm) |
| Max Loading Height | 21.99 ft in (6700 mm) |
| Max Reach Along Ground | 27.07 ft in (8250 mm) |
| Max Digging Depth | 16.41 ft in (5000 mm) |
| Boom/Stick Option (Mex) 1 | Hydr. Adjustable Boom 3200mm w/ stick 2050mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 25.27 ft in (7700 mm) |
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Max Cutting Height | 31.83 ft in (9700 mm) |
| Max Loading Height | 22.48 ft in (6850 mm) |
| Max Reach Along Ground | 27.73 ft in (8450 mm) |
| Max Digging Depth | 17.07 ft in (5200 mm) |
| Boom/Stick Option (Mex) 2 | Hydr. Adjustable Boom 3200mm w/stick 2250mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Shipping Length Of Unit | 28.38 ft in (8650 mm) |
| Max Cutting Height | 26.91 ft in (8200 mm) |
| Max Loading Height | 17.72 ft in (5400 mm) |
| Max Reach Along Ground | 25.6 ft in (7800 mm) |
| Max Digging Depth | 15.26 ft in (4650 mm) |
| Boom/Stick Option (Mex) 3 | Gooseneck Boom 4500mm w/stick 2050mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.21 ft in (3110 mm) |
| Shipping Length Of Unit | 27.24 ft in (8300 mm) |
| Max Cutting Height | 27.24 ft in (8300 mm) |
| Max Loading Height | 18.05 ft in (5500 mm) |
| Max Reach Along Ground | 26.25 ft in (8000 mm) |
| Max Digging Depth | 15.92 ft in (4850 mm) |
| Boom/Stick Option (Mex) 4 | Gooseneck Boom 4500mm w/stick 2250mm |
Dimensions
| Wheelbase | 8.34 ft in (2540 mm) |
| Tail Swing Radius | 6.3 ft in (1920 mm) |
| Overall Width | 8.21 in (2500 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Overall Width - Outriggers Down | 12.31 ft in (3750 mm) |
| Height To Top Of Cab | 10.21 ft in (3110 mm) |
| Upper Structure Clearance | 3.94 ft in (1200 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M1013E |
| Net Power | 102 hp (76.1 kw) |
| Power Measured @ | 18000 rpm |
| Displacement | 293 cu in (4.8 L) |
| Aspiration | Direct injection turbo-charged |
Operational
| Operating Weight | 30423.8 lb (13800 kg) |
| Fuel Capacity | 56.8 gal (215 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Type | Variable Displacement, Swashplate Pump |
| Hydraulic Pump Flow Capacity | 60.8 gal/min (230 L/min) |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 25.1 lb ft (34 Nm) |
Transmission
| Transmission Type | Oversized two speed power shift trandmission and integrated protection with additional creeper speed |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 12.5 mph (20 km/h) |
Buckets
| Reference Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 1 yd3 (0.8 m3) |
