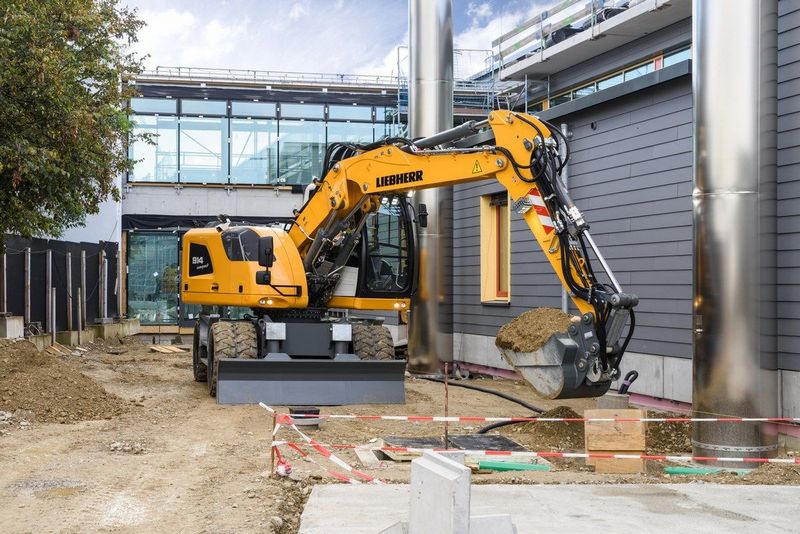

Liebherr A914 LITRONIC
Browse All Liebherr or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 27.1 ft in (8260.08 mm) |
| Shipping Height Of Unit | 9.6 ft in (2926.08 mm) |
| Max Reach Along Ground | 27.11 ft in (8263.13 mm) |
| Max Digging Depth | 16.11 ft in (4910.33 mm) |
| Max Dumping Height | 22.6 ft in (6888.48 mm) |
| Max Teeth Height | 31.8 ft in (9692.64 mm) |
| Max Digging Force | 15432 lb (68.65 kN) |
| Min Attachment Radius | 7.8 ft in (2377.44 mm) |
| Max Breakout Force | 19180 lb (85.32 kN) |
| Boom/Stick Option (Mex) 1 | Two-piece boom - 15 ft 11 in, Stick - 7 ft 5 in |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 26.1 ft in (7955.28 mm) |
| Shipping Height Of Unit | 9.6 ft in (2926.08 mm) |
| Max Reach Along Ground | 26.9 ft in (8199.13 mm) |
| Max Digging Depth | 17.11 ft in (5212.08 mm) |
| Min Attachment Radius | 6.9 ft in (2103.12 mm) |
| Boom/Stick Option (Mex) 2 | Mono boom - 15 ft 1 in, Stick - 7 ft 5 in |
| Max Breakout Force | 19180 lb (85.32 kN) |
| Max Digging Force | 15432 lb (68.65 kN) |
| Max Dumping Height | 20.11 ft in (6126.48 mm) |
| Max Teeth Height | 29.1 ft in (8869.68 mm) |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.4 ft in (3169.92 mm) |
| Shipping Length Of Unit | 27.1 ft in (8260.08 mm) |
| Max Reach Along Ground | 27.11 ft in (8263.13 mm) |
| Max Digging Depth | 17.11 ft in (5212.08 mm) |
| Max Dumping Height | 22 ft in (6705.6 mm) |
| Min Attachment Radius | 7.7 ft in (2346.96 mm) |
| Max Digging Force | 15432 lb (68.65 kN) |
| Max Breakout Force | 19180 lb (85.32 kN) |
| Max Teeth Height | 31 ft in (9448.8 mm) |
| Boom/Stick Option (Mex) 3 | Offset two-piece boom - 16 ft 1 in, Stick - 7 ft 5 in |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.1 ft in (3078.48 mm) |
| Shipping Length Of Unit | 25.1 ft in (7650.48 mm) |
| Max Reach Along Ground | 25.7 ft in (7833.36 mm) |
| Max Digging Depth | 15.7 ft in (4785.36 mm) |
| Boom/Stick Option (Mex) 4 | Offset Mono Boom - 14 ft 1 in, Stick - 7 ft 5 in |
| Min Attachment Radius | 5.7 ft in (1737.36 mm) |
| Max Teeth Height | 29.4 ft in (8961.13 mm) |
| Max Dumping Height | 20.4 ft in (6217.92 mm) |
| Max Digging Force | 15432 lb (68.65 kN) |
| Max Breakout Force | 19180 lb (85.32 kN) |
Dimensions
| Wheelbase | 8.4 ft in (2560.33 mm) |
| Tail Swing Radius | 7.1 ft in (2164.08 mm) |
| Overall Width | 99 in (2514.6 mm) |
| Ground Clearance | 1.2 ft in (365.76 mm) |
| Height To Top Of Cab | 10.5 ft in (3200.4 mm) |
Electrical System
| Alternator | Three-phase current 28 V/140 A |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 135 Ah/12 V |
Engine
| Number Of Cylinders | 4 |
| Engine Model | Liebherr D924 |
| Engine Type | 4 cylinder in-line |
| Emissions Compliance | Liebherr-SCR technology |
| Gross Power | 141 hp (105.2 kw) |
| Cooling System | Water-cooled |
| Air Cleaner | Dry-type air cleaner with pre-cleaner, primary and safety elements |
| Power Measured @ | 1800 rpm |
| Displacement | 274.6 cu in (4.5 L) |
| Bore | 4.1 in (104.2 mm) |
| Stroke | 5.2 in (132.1 mm) |
Operational
| Urea Tank | 12 gal (45.5 L) |
| Fuel Capacity | 66 gal (249.9 L) |
| Operating Weight | 37900 lb (17191.2 kg) |
| Hydraulic Fluid Capacity | 34.5 gal (130.6 L) |
| Hydraulic System Fluid Capacity | 79.5 gal (301 L) |
| Hydraulic System Relief Valve Pressure | 5076 psi (34997.8 kPa) |
| Hydraulic Pump Type | Liebherr axial piston variable displacement pump |
| Hydraulic Pump Flow Capacity | 66 gal/min (249.9 L/min) |
Swing Mechanism
| Drive | Liebherr axial piston motor with integrated brake valve and torque control, Liebherr planetary reduction gear |
| Swing Ring | Liebherr, sealed race ball bearing swing ring, internal teeth |
| Holding Brake | Wet multi-disc |
| Swing Speed | 10 rpm |
| Swing Torque | 39828 lb ft (53999.6 Nm) |
Transmission
| Max Travel Speed | 18.6 mph (30 km/h) |
Buckets
| Minimum Bucket Capacity | 0.3 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 1.2 yd3 (0.9 m3) |
