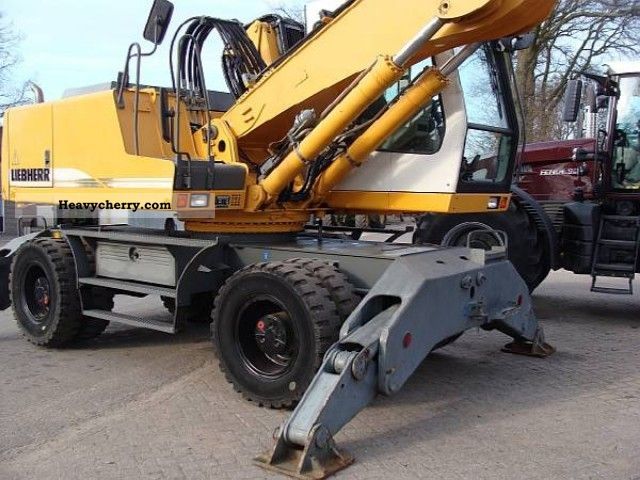

Liebherr A914B
Browse All Liebherr or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 30.52 ft in (9300 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Cutting Height | 32.65 ft in (9950 mm) |
| Max Loading Height | 22.15 ft in (6750 mm) |
| Max Reach Along Ground | 29.7 ft in (9050 mm) |
| Max Vertical Wall Dig Depth | 13 ft in (3962.4 mm) |
| Max Digging Depth | 19.2 ft in (5850 mm) |
| Boom/Stick Option (Mex) 1 | 12.75 ft boom / 6.83 ft stick |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 30.52 ft in (9300 mm) |
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Max Cutting Height | 33.31 ft in (10150 mm) |
| Max Loading Height | 22.81 ft in (6950 mm) |
| Max Reach Along Ground | 30.68 ft in (9350 mm) |
| Max Vertical Wall Dig Depth | 14 ft in (4267.2 mm) |
| Max Digging Depth | 20.18 ft in (6150 mm) |
| Boom/Stick Option (Mex) 2 | 12.75 ft boom / 7.83 ft stick |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Shipping Length Of Unit | 30.52 ft in (9300 mm) |
| Max Cutting Height | 3.4 ft in (1035 mm) |
| Max Loading Height | 23.46 ft in (7150 mm) |
| Max Reach Along Ground | 31.67 ft in (9650 mm) |
| Max Vertical Wall Dig Depth | 15 ft in (4572 mm) |
| Max Digging Depth | 21.17 ft in (6450 mm) |
| Boom/Stick Option (Mex) 3 | 12.75 ft boom / 8.83 ft stick |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.5 ft in (3200 mm) |
| Shipping Length Of Unit | 30.52 ft in (9300 mm) |
| Max Cutting Height | 33.96 ft in (10350 mm) |
| Max Loading Height | 23.46 ft in (7150 mm) |
| Max Reach Along Ground | 31.67 ft in (9650 mm) |
| Max Vertical Wall Dig Depth | 16 ft in (4876.8 mm) |
| Max Digging Depth | 21.17 ft in (6450 mm) |
| Boom/Stick Option (Mex) 4 | 12.75 ft boom / 9.83 ft stick |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Tail Swing Radius | 9.08 ft in (2765 mm) |
| Overall Width | 8.21 in (2500 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Overall Width - Outriggers Down | 13.18 ft in (4015 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Upper Structure Clearance | 4.25 ft in (1295 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D 924 Tl-E |
| Net Power | 152 hp (113.4 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 402.8 cu in (6.6 L) |
| Aspiration | direct injection turbo-charged and after-cooled reduced emissions |
Operational
| Operating Weight | 47179 lb (21400 kg) |
| Fuel Capacity | 95.2 gal (360 L) |
| Hydraulic System Fluid Capacity | 116.3 gal (440 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Type | Variable displacement, swashplate |
| Hydraulic Pump Flow Capacity | 105.7 gal/min (400 L/min) |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 48.7 lb ft (66 Nm) |
Transmission
| Transmission Type | oversized two speed power shift transmission with additional creeper speed |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 12.5 mph (20 km/h) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 1.9 yd3 (1.4 m3) |
