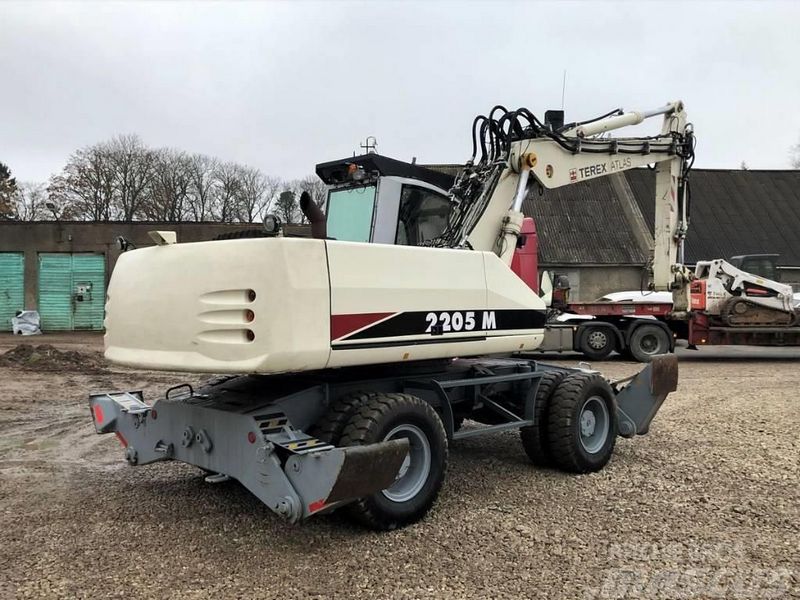

Terex 2205M
Browse All Terex or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 35.93 ft in (10950 mm) |
| Max Digging Depth | 20.51 ft in (6250 mm) |
| Boom/Stick Option (Mex) 1 | two piece boom 13'9" (4190mm) w/ stick 2210mm |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 37.24 ft in (11350 mm) |
| Max Digging Depth | 22.15 ft in (6750 mm) |
| Boom/Stick Option (Mex) 2 | two piece boom 13'9" (4190mm) w/ stick 2690mm |
Boom/Stick Option (Mex) 3
| Max Cutting Height | 29.7 ft in (9050 mm) |
| Max Digging Depth | 19.2 ft in (5850 mm) |
| Boom/Stick Option (Mex) 3 | one piece boom 19'0" (5790mm) w/ stick 2210mm |
Boom/Stick Option (Mex) 4
| Max Cutting Height | 31.17 ft in (9500 mm) |
| Max Digging Depth | 21.66 ft in (6600 mm) |
| Boom/Stick Option (Mex) 4 | one piece boom 19'0" (5790mm) w/ stick 2690mm |
Dimensions
| Wheelbase | 8.86 ft in (2700 mm) |
| Overall Width | 9.03 in (2750 mm) |
| Overall Width - Outriggers Down | 13.82 ft in (4210 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
| Upper Structure Clearance | 4.18 ft in (1272 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF6M 2012 C |
| Net Power | 182 hp (135.8 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 366 cu in (6 L) |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 105.7 gal (400 L) |
| Operating Weight | 46517.6 lb (21100 kg) |
| Engine Oil Capacity | 3.7 gal (14 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Operational Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 5511 psi (37997 kPa) |
| Hydraulic Pump Type | piston pump |
| Hydraulic Pump Flow Capacity | 121.6 gal/min (460 L/min) |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9 rpm |
| Swing Torque | 49859.2 lb ft (67600 Nm) |
Transmission
| Max Travel Speed | 12.4 mph (20 km/h) |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 1 yd3 (0.8 m3) |
| Maximum Bucket Capacity | 1.8 yd3 (1.4 m3) |
