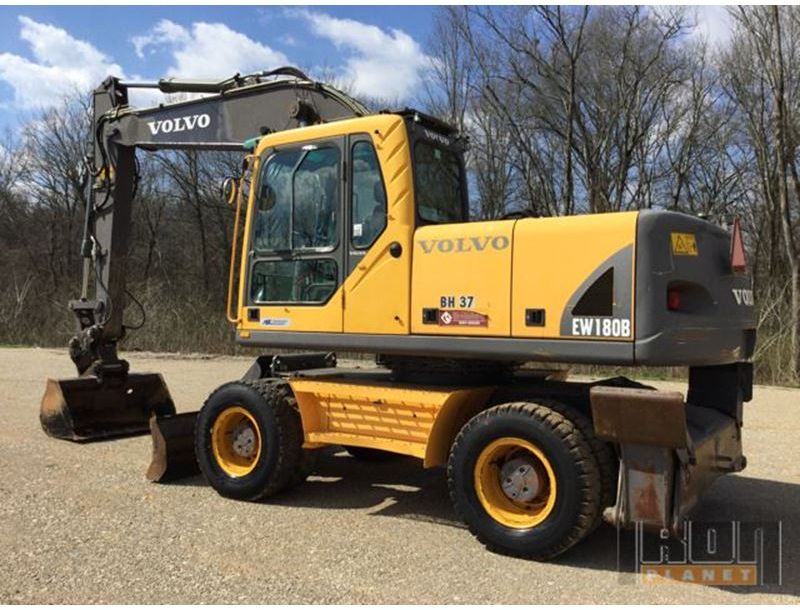

Volvo EW180B
Browse All Volvo or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 28.52 ft in (8690 mm) |
| Shipping Height Of Unit | 10.24 ft in (3120 mm) |
| Max Cutting Height | 29.86 ft in (9100 mm) |
| Max Loading Height | 21 ft in (6400 mm) |
| Max Reach Along Ground | 29.53 ft in (9000 mm) |
| Max Vertical Wall Dig Depth | 13.78 ft in (4200 mm) |
| Max Digging Depth | 18.71 ft in (5700 mm) |
| Boom/Stick Option (Mex) 1 | Monobloc Boom 5200mm / Stick 2450mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 28.83 ft in (8785 mm) |
| Shipping Height Of Unit | 10.83 ft in (3300 mm) |
| Max Cutting Height | 29.86 ft in (9100 mm) |
| Max Loading Height | 21 ft in (6400 mm) |
| Max Reach Along Ground | 29.86 ft in (9100 mm) |
| Max Vertical Wall Dig Depth | 14.11 ft in (4300 mm) |
| Max Digging Depth | 19.03 ft in (5800 mm) |
| Boom/Stick Option (Mex) 2 | Monobloc Boom 5200mm / Stick 2600mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.09 ft in (3075 mm) |
| Shipping Length Of Unit | 28.86 ft in (8795 mm) |
| Max Cutting Height | 32.49 ft in (9900 mm) |
| Max Loading Height | 22.97 ft in (7000 mm) |
| Max Reach Along Ground | 29.86 ft in (9100 mm) |
| Max Vertical Wall Dig Depth | 13.78 ft in (4200 mm) |
| Max Digging Depth | 19.36 ft in (5900 mm) |
| Boom/Stick Option (Mex) 3 | 2-piece Boom 5250mm / Stick 2450mm |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.24 ft in (3120 mm) |
| Shipping Length Of Unit | 28.83 ft in (8785 mm) |
| Max Cutting Height | 32.81 ft in (10000 mm) |
| Max Loading Height | 23.3 ft in (7100 mm) |
| Max Reach Along Ground | 30.19 ft in (9200 mm) |
| Max Vertical Wall Dig Depth | 14.11 ft in (4300 mm) |
| Max Digging Depth | 19.36 ft in (5900 mm) |
| Boom/Stick Option (Mex) 4 | 2-piece Boom 4700mm / Stick 2600mm |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 8.04 ft in (2450 mm) |
| Overall Width | 8.37 in (2550 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Overall Width - Outriggers Down | 13 ft in (3960 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D6D EFE2 |
| Gross Power | 160 hp (119.4 kw) |
| Net Power | 150 hp (111.9 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 347.9 cu in (5.7 L) |
| Torque Measured @ | 1450 rpm |
| Net Torque | 489.1 lb ft (663 Nm) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 79.3 gal (300 L) |
| Operating Weight | 42328.8 lb (19200 kg) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 5221.4 psi (36000 kPa) |
| Hydraulic Pump Type | axial piston |
| Hydraulic Pump Flow Capacity | 12.5 gal/min (47 L/min) |
| Oscillating Axle Angle | 18 degrees |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9.5 rpm |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.8 mph (35 km/h) |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.9 m3) |
| Minimum Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.5 yd3 (1.1 m3) |
