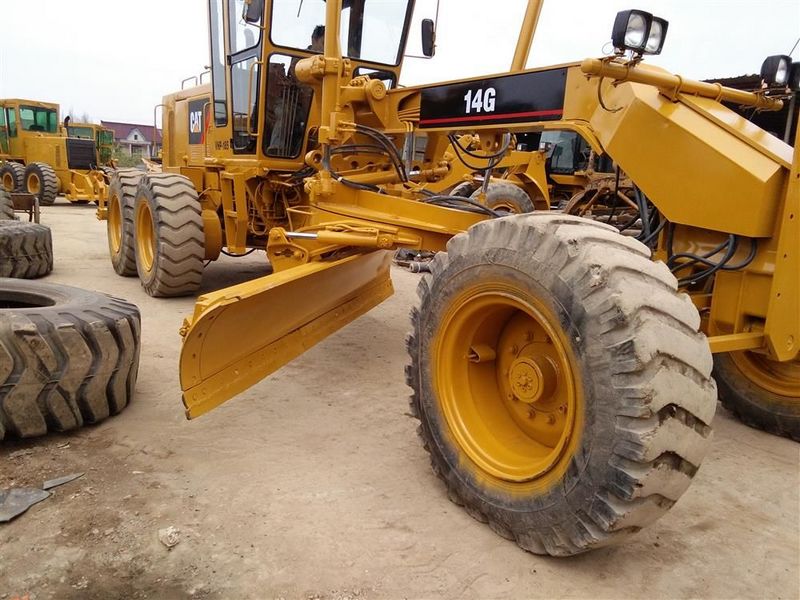

Caterpillar 14G
Browse All Caterpillar or Motor Grader Models
Contents:
Dimensions
| Overall Length | 30.25 ft in (9220 mm) |
| Width Over Tires | 9.32 ft in (2840 mm) |
| Wheelbase | 21.17 ft in (6450 mm) |
| Blade Base | 9.42 ft in (2870 mm) |
| Height To Top Of Isomount Cab | 11.72 ft in (3570 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Net Power Gear 5-6 | 180 hp (134.3 kw) |
| Max Power | 180 hp (134.3 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Std Operation Weight - Total | 40653.3 lb (18440 kg) |
| Tire Size | 16x24 10 PR |
Steering
| Turning Radius | 26 ft in (7.9 m) |
Transmission
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 8 |
| Max Speed - Forward | 27.1 mph (43.5 km/h) |
| Max Speed - Reverse | 31.5 mph (50.6 km/h) |
