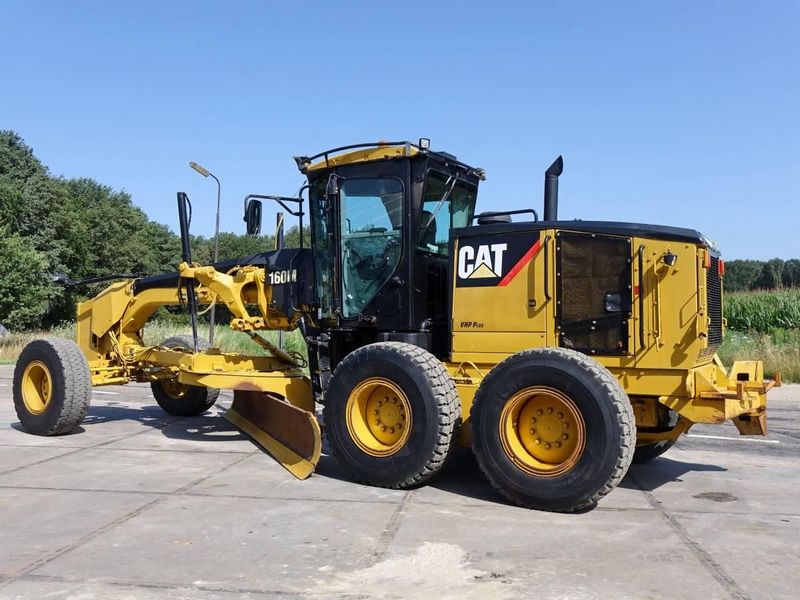

Caterpillar 160M
Browse All Caterpillar or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28.58 ft in (8713 mm) |
| Width Over Tires | 8.17 ft in (2493 mm) |
| Wheelbase | 20.08 ft in (6121 mm) |
| Rear Ground Clearance | 1.13 ft in (341 mm) |
| Tandem Axle Wheelbase | 5 ft in (1523 mm) |
| Front Ground Clearance | 1.96 ft in (600 mm) |
| Blade Base | 8.56 ft in (2609 mm) |
| Height To Top Of Isomount Cab | 10.8 ft in (3293 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C9 ACERT VHP |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 2000 rpm |
| Max Power | 213 hp (158.9 kw) |
| Net Power Gears 7-8 | 213 hp (158.9 kw) |
| Net Torque Gears 7-8 | 912.4 lb ft (1237 Nm) |
| Displacement | 537 cu in (8.8 L) |
Operational
| Std Operation Weight - Front Axle | 9677 lb (4389 kg) |
| Hydraulic System Fluid Capacity | 16.9 gal (64 L) |
| Std Operation Weight - Rear Axle | 25383 lb (11514 kg) |
| Std Operation Weight - Total | 35060 lb (15903 kg) |
| Max Operation Weight - Front Axle | 18478 lb (8382 kg) |
| Max Operation Weight - Rear Axle | 34317 lb (15565 kg) |
| Max Operation Weight - Total | 52795 lb (23947 kg) |
| Fuel Capacity | 105 gal (398 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Rear Diff/Final Drive Fluid Capacity | 17.2 gal (65 L) |
| Circle Gearbox Fluid Capacity | 1.8 gal (7 L) |
| Tandem Case Fluid Capacity (Each) | 21.1 gal (80 L) |
Steering
| Articulation Angle | 20 degrees |
| Turning Radius | 25 ft in (7.6 m) |
Transmission
| Transmission Type | direct drive, power shift, countershaft |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 29.5 mph (47.4 km/h) |
| Max Speed - Reverse | 23.3 mph (37.4 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 32 degrees |
| Ground Clearance | 2 ft in (600 mm) |
Moldboard
| Moldboard Width | 14 ft in (4300 mm) |
| Moldboard Height | 27 in (686 mm) |
| Moldboard Thickness | 1 in (25 mm) |
| Max Depth Of Cut | 29.5 in (750 mm) |
| Side Shift Left | 32.3 in (820 mm) |
| Side Shift Right | 37.4 in (950 mm) |
| Blade Pull At Max Weight | 32904 lb (18693 kg) |
Hydraulic System
| Pump Type | variable piston |
| Pump Flow | 55.7 gal/min (210 L/min) |
| Relief Valve Pressure | 3500 psi (24150 kPa) |
Circle
| Diameter | 61.1 in (1553 mm) |
| Shift Left | 27.4 in (695 mm) |
| Shift Right | 28.7 in (728 mm) |
| Max Reach Outside Tires - Left | 82.3 in (2090 mm) |
| Max Reach Outside Tires - Right | 89.7 in (2278 mm) |
| Max Lift Above Ground | 17.8 in (452 mm) |
| Blade Tip Angle - Front | 40 degrees |
| Blade Tip Angle - Rear | 5 degrees |
