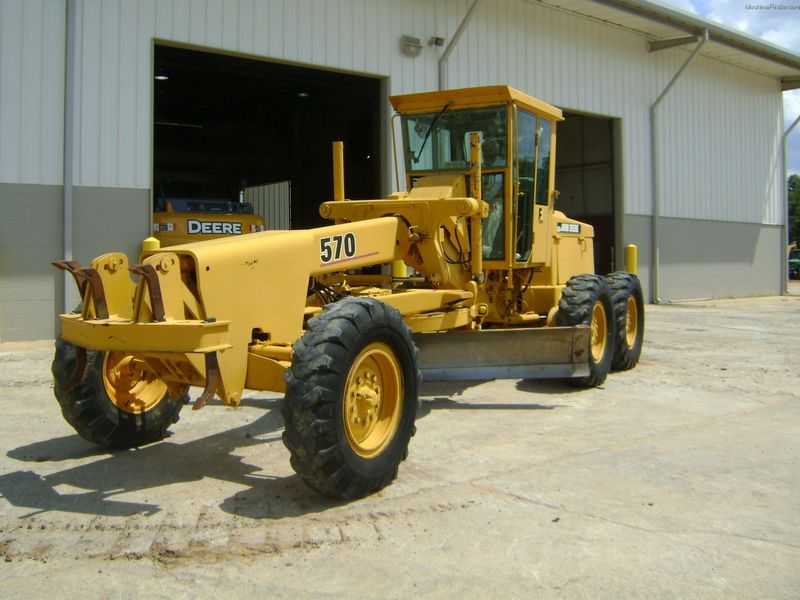

John Deere 570B
Browse All John Deere or Motor Grader Models
Contents:
Dimensions
| Overall Length | 24.38 ft in (7430 mm) |
| Width Over Tires | 7.91 ft in (2410 mm) |
| Wheelbase | 17.33 ft in (5280 mm) |
| Tandem Axle Wheelbase | 4.73 ft in (1440 mm) |
| Front Ground Clearance | 1.96 ft in (597 mm) |
| Blade Base | 7.68 ft in (2340 mm) |
| Height To Top Of Isomount Cab | 10.14 ft in (3090 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6059D |
| Power Measured @ | 2300 rpm |
| Torque Measured @ | 1300 rpm |
| Max Power | 90 hp (67.2 kw) |
| Net Power Gears 7-8 | 90 hp (67.2 kw) |
| Net Torque Gears 7-8 | 250 lb ft (339 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | Natural |
Operational
| Std Operation Weight - Front Axle | 5725 lb (2597 kg) |
| Std Operation Weight - Rear Axle | 14500 lb (6477 kg) |
| Hydraulic System Fluid Capacity | 14 gal (53 L) |
| Std Operation Weight - Total | 20225 lb (9174 kg) |
| Max Operation Weight - Front Axle | 6775 lb (3073 kg) |
| Max Operation Weight - Rear Axle | 14928 lb (6771 kg) |
| Max Operation Weight - Total | 21703 lb (9844 kg) |
| Oil System Fluid Capacity | 3 gal (11 L) |
| Fuel Capacity | 50 gal (189 L) |
| Cooling System Fluid Capacity | 5.6 gal (21.1 L) |
| Circle Gearbox Fluid Capacity | 1.5 gal (1.4 L) |
| Tandem Case Fluid Capacity (Each) | 5 gal (19 L) |
| Tire Size | 13.00-24 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 42 amps |
Steering
| Articulation Angle | 22 degrees |
| Turning Radius | 18 ft in (5.5 m) |
Transmission
| Transmission Type | Power Shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 21.6 mph (34.8 km/h) |
| Max Speed - Reverse | 7.1 mph (11.4 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 2 ft in (597 mm) |
Moldboard
| Moldboard Width | 12 ft in (3.7 mm) |
| Moldboard Height | 22 in (559 mm) |
| Moldboard Thickness | 0.7 in (16 mm) |
| Side Shift Left | 31.3 in (794 mm) |
| Side Shift Right | 26.8 in (679 mm) |
Hydraulic System
| Pump Type | Pressure Controlled Variable Displacement |
| Pump Flow | 27 gal/min (102 L/min) |
Circle
| Diameter | 54 in (1370 mm) |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 77.2 in (1960 mm) |
| Max Reach Outside Tires - Right | 71.7 in (1820 mm) |
| Max Lift Above Ground | 13 in (330 mm) |
| Blade Tip Angle - Front | 32 degrees |
