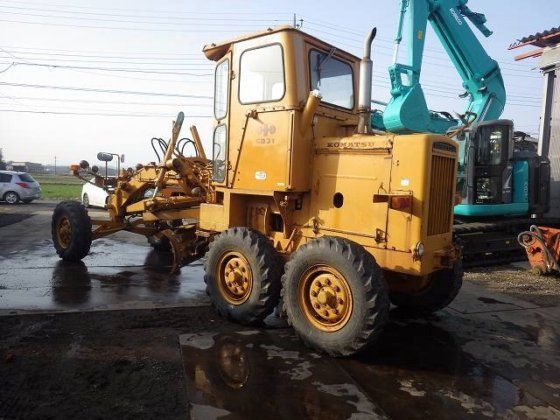

Komatsu GD31RC-3A
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 22.18 ft in (6760 mm) |
| Width Over Tires | 6.83 ft in (2080 mm) |
| Wheelbase | 16.08 ft in (4900 mm) |
| Rear Ground Clearance | 1.15 ft in (350 mm) |
| Tandem Axle Wheelbase | 3.94 ft in (1200 mm) |
| Front Ground Clearance | 1.43 ft in (435 mm) |
| Height To Top Of Isomount Cab | 10.37 ft in (3160 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | 4D130 |
| Net Power Gear 5-6 | 110 hp (82.1 kw) |
| Max Power | 110 hp (82.1 kw) |
| Net Torque Gears 5-6 | 375 lb ft (508.5 Nm) |
| Displacement | 518 cu in (8.5 L) |
Operational
| Std Operation Weight - Front Axle | 5269.1 lb (2390 kg) |
| Std Operation Weight - Rear Axle | 14418.3 lb (6540 kg) |
| Std Operation Weight - Total | 19687.3 lb (8930 kg) |
| Tire Size | front 9.00-20-10PR, rear 11.00-20-10PR |
Steering
| Turning Radius | 29.6 ft in (9 m) |
Transmission
| Transmission Type | sliding mesh and constant mesh combined |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 2 |
| Max Speed - Forward | 23.8 mph (38.3 km/h) |
| Max Speed - Reverse | 7.3 mph (11.6 km/h) |
Front Axle
| Wheel Lean | 25 degrees |
| Oscillation - Total | 26 degrees |
| Ground Clearance | 1.5 ft in (435 mm) |
Moldboard
| Moldboard Width | 10.2 ft in (3100 mm) |
| Moldboard Height | 20.5 in (520 mm) |
| Moldboard Thickness | 0.5 in (12 mm) |
| Max Depth Of Cut | 17 in (430 mm) |
Circle
| Max Reach Outside Tires - Left | 61.3 in (1555 mm) |
| Max Reach Outside Tires - Right | 61.3 in (1555 mm) |
| Max Lift Above Ground | 18.2 in (460 mm) |
