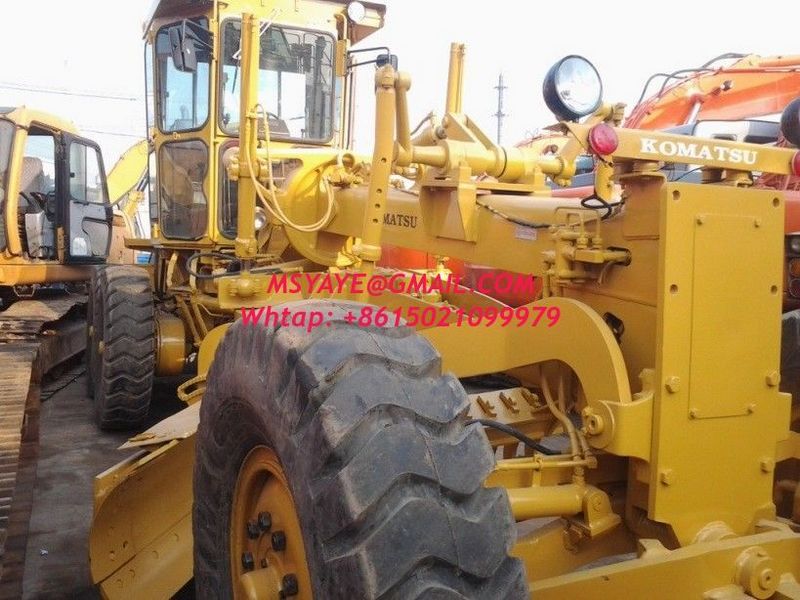

Komatsu GD505R-2
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 26.51 ft in (8080 mm) |
| Width Over Tires | 7.67 ft in (2335 mm) |
| Wheelbase | 18.97 ft in (5780 mm) |
| Rear Ground Clearance | 1.15 ft in (350 mm) |
| Tandem Axle Wheelbase | 4.94 ft in (1505 mm) |
| Front Ground Clearance | 1.81 ft in (550 mm) |
| Blade Base | 8.34 ft in (2540 mm) |
| Height To Top Of Isomount Cab | 9.77 ft in (2975 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | S6D105 |
| Net Power Gear 5-6 | 130 hp (97 kw) |
| Max Power | 130 hp (97 kw) |
| Displacement | 396 cu in (6.5 L) |
Operational
| Std Operation Weight - Front Axle | 6613.9 lb (3000 kg) |
| Std Operation Weight - Rear Axle | 17041.8 lb (7730 kg) |
| Std Operation Weight - Total | 23655.7 lb (10730 kg) |
| Tire Size | 13.00-24-8 PR |
Steering
| Articulation Angle | 36 degrees |
| Turning Radius | 34.2 ft in (10.4 m) |
Transmission
| Transmission Type | Hydroshift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 27 mph (43.4 km/h) |
| Max Speed - Reverse | 28 mph (45 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 1.9 ft in (550 mm) |
Moldboard
| Moldboard Width | 12.2 ft in (3710 mm) |
| Moldboard Height | 25.8 in (655 mm) |
| Moldboard Thickness | 0.8 in (19 mm) |
| Max Depth Of Cut | 19.9 in (505 mm) |
Circle
| Max Reach Outside Tires - Left | 80.8 in (2050 mm) |
| Max Reach Outside Tires - Right | 78.8 in (2000 mm) |
| Max Lift Above Ground | 17 in (430 mm) |
