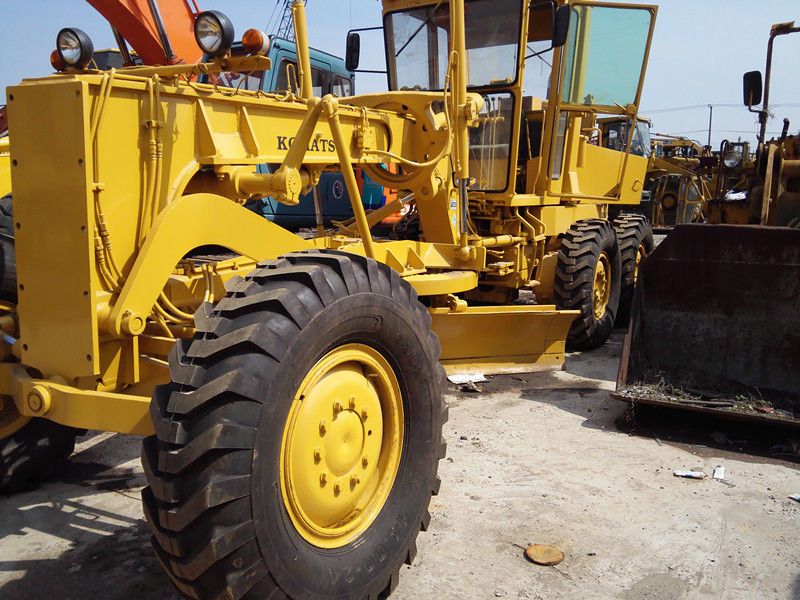

Komatsu GD611A-1
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.5 ft in (8380 mm) |
| Width Over Tires | 7.86 ft in (2395 mm) |
| Wheelbase | 19.69 ft in (6000 mm) |
| Rear Ground Clearance | 1.17 ft in (355 mm) |
| Tandem Axle Wheelbase | 5.04 ft in (1535 mm) |
| Blade Base | 8.54 ft in (2600 mm) |
| Height To Top Of Isomount Cab | 11.44 ft in (3485 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D105 |
| Power Measured @ | 2500 rpm |
| Net Power Gear 5-6 | 155.6 hp (116 kw) |
| Max Power | 155.6 hp (116 kw) |
| Displacement | 396.1 cu in (6.5 L) |
Operational
| Std Operation Weight - Total | 27557.8 lb (12500 kg) |
| Fuel Capacity | 75.3 gal (285 L) |
| Tire Size | 13.00-24-10PR |
Steering
| Articulation Angle | 26 degrees |
| Turning Radius | 22.7 ft in (6.9 m) |
Transmission
| Number Of Gears - Forward | 6 |
| Max Speed - Forward | 27.8 mph (44.6 km/h) |
| Max Speed - Reverse | 33.9 mph (54.4 km/h) |
Front Axle
| Ground Clearance | 1.2 ft in (355 mm) |
Moldboard
| Moldboard Width | 12.2 ft in (3710 mm) |
| Moldboard Height | 25.4 in (645 mm) |
