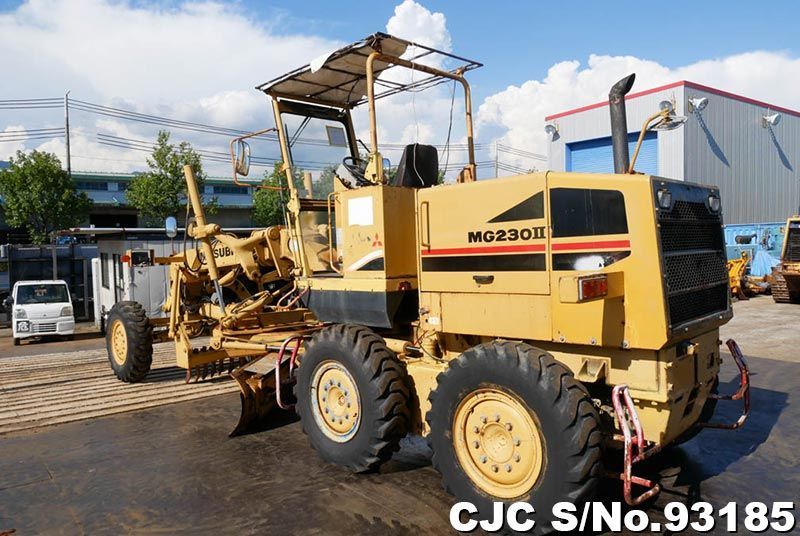

Mitsubishi MG230
Browse All Mitsubishi or Motor Grader Models
Contents:
Dimensions
| Overall Length | 24.04 ft in (7325 mm) |
| Width Over Tires | 7.11 ft in (2165 mm) |
| Wheelbase | 17.39 ft in (5300 mm) |
| Height To Top Of Isomount Cab | 8.96 ft in (2730 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | C 6D34-TE1 |
| Power Measured @ | 2500 rpm |
| Net Power Gear 5-6 | 115 hp (85.8 kw) |
| Max Power | 115 hp (85.8 kw) |
| Displacement | 357.7 cu in (5.9 L) |
Operational
| Std Operation Weight - Total | 20635.3 lb (9360 kg) |
| Tire Size | 11.00-20-10PR |
| Operating Voltage | 24 V |
Steering
| Turning Radius | 19685.1 ft in (6 m) |
Transmission
| Transmission Type | power shift, planetary gear, hydraulically actuated |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 27.5 mph (44.2 km/h) |
| Max Speed - Reverse | 28 mph (45 km/h) |
Moldboard
| Moldboard Width | 10.2 ft in (3100 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.7 in (16 mm) |
