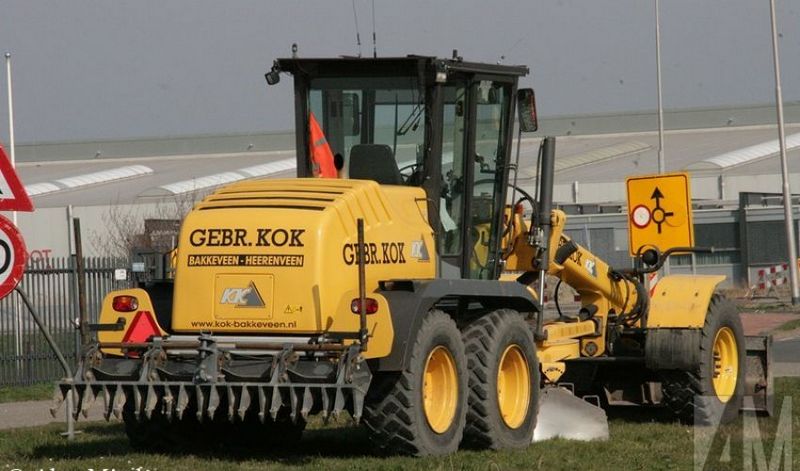

New Holland F156.6A
Browse All New Holland or Motor Grader Models
Contents:
Dimensions
| Overall Length | 32.73 ft in (9975 mm) |
| Width Over Tires | 8.52 ft in (2595 mm) |
| Wheelbase | 19.63 ft in (5983 mm) |
| Rear Ground Clearance | 1.08 ft in (328 mm) |
| Tandem Axle Wheelbase | 5.07 ft in (1544 mm) |
| Front Ground Clearance | 0.47 ft in (141 mm) |
| Blade Base | 8.22 ft in (2504 mm) |
| Height To Top Of Isomount Cab | 11.07 ft in (3373 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | CNH 4-Stroke Diesel Engine |
| Power Measured @ | 2100 rpm |
| Net Power Gear 5-6 | 175 hp (130.5 kw) |
| Max Power | 175 hp (130.5 kw) |
| Displacement | 358.9 cu in (5.9 L) |
| Aspiration | turbocharged water-cooled |
Operational
| Std Operation Weight - Front Axle | 1005.4 lb (456 kg) |
| Hydraulic System Fluid Capacity | 52.9 gal (200 L) |
| Std Operation Weight - Rear Axle | 22357.1 lb (10141 kg) |
| Std Operation Weight - Total | 32487.4 lb (14736 kg) |
| Max Operation Weight - Front Axle | 11464.1 lb (5200 kg) |
| Max Operation Weight - Rear Axle | 25353.2 lb (11500 kg) |
| Oil System Fluid Capacity | 3.4 gal (12.5 L) |
| Max Operation Weight - Total | 35714.9 lb (16200 kg) |
| Fuel Capacity | 72.7 gal (275 L) |
| Transmission Fluid Capacity | 5.6 gal (21 L) |
| Tandem Case Fluid Capacity (Each) | 18 gal (68 L) |
| Tire Size | 17.5R25EM |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Steering
| Articulation Angle | 28 degrees |
| Turning Radius | 27067 ft in (8250 m) |
Transmission
| Transmission Type | Full Powershift Transmission |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 3 |
| Max Speed - Forward | 23.3 mph (37.4 km/h) |
| Max Speed - Reverse | 16.9 mph (27.1 km/h) |
Front Axle
| Wheel Lean | 21 degrees |
| Oscillation - Total | 15 degrees |
| Ground Clearance | 2.2 ft in (646 mm) |
Moldboard
| Moldboard Width | 12.1 ft in (3660 mm) |
| Moldboard Height | 6 in (152 mm) |
| Moldboard Thickness | 0.8 in (19 mm) |
| Max Depth Of Cut | 19.7 in (500 mm) |
| Side Shift Left | 25.4 in (645 mm) |
| Side Shift Right | 29.8 in (755 mm) |
Hydraulic System
| Pump Type | Swash Plate, Variable Displacement |
| Pump Flow | 33.3 gal/min (126 L/min) |
| Relief Valve Pressure | 2900.8 psi (20000 kPa) |
Circle
| Shift Left | 25.4 in (645 mm) |
| Shift Right | 29.8 in (755 mm) |
| Max Reach Outside Tires - Left | 99.3 in (2520 mm) |
| Max Reach Outside Tires - Right | 126.4 in (3210 mm) |
| Max Lift Above Ground | 18.9 in (480 mm) |
