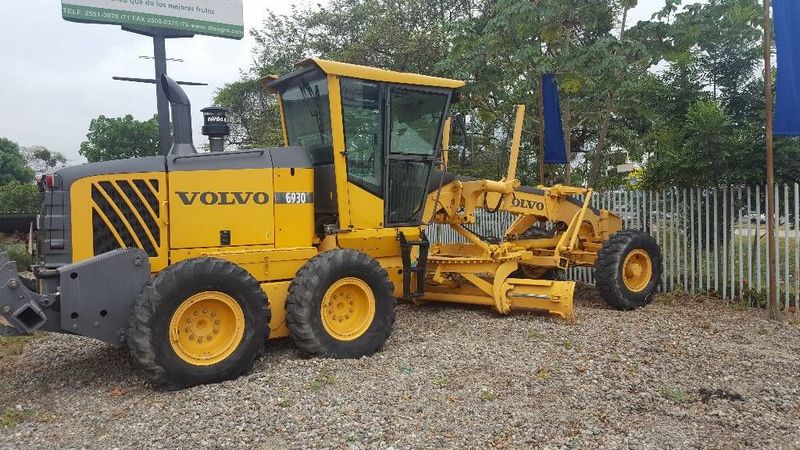

Volvo G930
Browse All Volvo or Motor Grader Models
Contents:
Dimensions
| Overall Length | 29.25 ft in (8930 mm) |
| Width Over Tires | 8.25 ft in (2537 mm) |
| Wheelbase | 20.43 ft in (6280 mm) |
| Front Ground Clearance | 2 ft in (610 mm) |
| Blade Base | 8.58 ft in (2675 mm) |
| Height To Top Of Isomount Cab | 10.42 ft in (3225 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D7EGCE3 |
| Power Measured @ | 1800 rpm |
| Torque Measured @ | 1550 rpm |
| Max Power | 204 hp (152.2 kw) |
| Net Power Gears 7-8 | 204 hp (152.2 kw) |
| Net Torque Gears 7-8 | 684 lb ft (928 Nm) |
| Displacement | 436 cu in (7.2 L) |
| Aspiration | Turbocharged, Aftercooled |
Operational
| Std Operation Weight - Front Axle | 10360 lb (4700 kg) |
| Hydraulic System Fluid Capacity | 24 gal (91 L) |
| Std Operation Weight - Rear Axle | 24470 lb (11100 kg) |
| Std Operation Weight - Total | 34830 lb (15800 kg) |
| Max Operation Weight - Front Axle | 16700 lb (7570 kg) |
| Max Operation Weight - Rear Axle | 31400 lb (14240 kg) |
| Max Operation Weight - Total | 42500 lb (19280 kg) |
| Oil System Fluid Capacity | 5.7 gal (21.5 L) |
| Fuel Capacity | 92 gal (348 L) |
| Cooling System Fluid Capacity | 8.2 gal (31 L) |
| Transmission Fluid Capacity | 16 gal (61 L) |
| Tandem Case Fluid Capacity (Each) | 26.4 gal (100 L) |
| Tire Size | 14:00 x 24, G-2 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Steering
| Articulation Angle | 50 degrees |
| Turning Radius | 23.9 ft in (7265 m) |
Transmission
| Transmission Type | HTE 840, Fully sequential, direct drive, volvo powershift transmission |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 28.4 mph (45.4 km/h) |
| Max Speed - Reverse | 20 mph (32 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 16 degrees |
| Ground Clearance | 2 ft in (610 mm) |
Moldboard
| Moldboard Width | 12 ft in (3657.6 mm) |
| Moldboard Height | 25 in (635 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 31 in (790 mm) |
| Side Shift Left | 26.5 in (673 mm) |
| Side Shift Right | 26.5 in (673 mm) |
| Blade Pull At Max Weight | 28260 lb (12816 kg) |
| Blade Down Pressure | 18021 lb (8188 kg) |
Hydraulic System
| Pump Type | Axial piston pump |
| Pump Flow | 55 gal/min (208 L/min) |
| Relief Valve Pressure | 3000 psi (207 kPa) |
Circle
| Diameter | 64 in (1626 mm) |
| Rotation | 360 degrees |
| Shift Left | 30.5 in (775 mm) |
| Shift Right | 29.5 in (749 mm) |
| Max Reach Outside Tires - Left | 80 in (2020 mm) |
| Max Reach Outside Tires - Right | 79 in (2010 mm) |
| Max Lift Above Ground | 19.4 in (492 mm) |
| Blade Tip Angle - Front | 47 degrees |
| Blade Tip Angle - Rear | 5 degrees |
