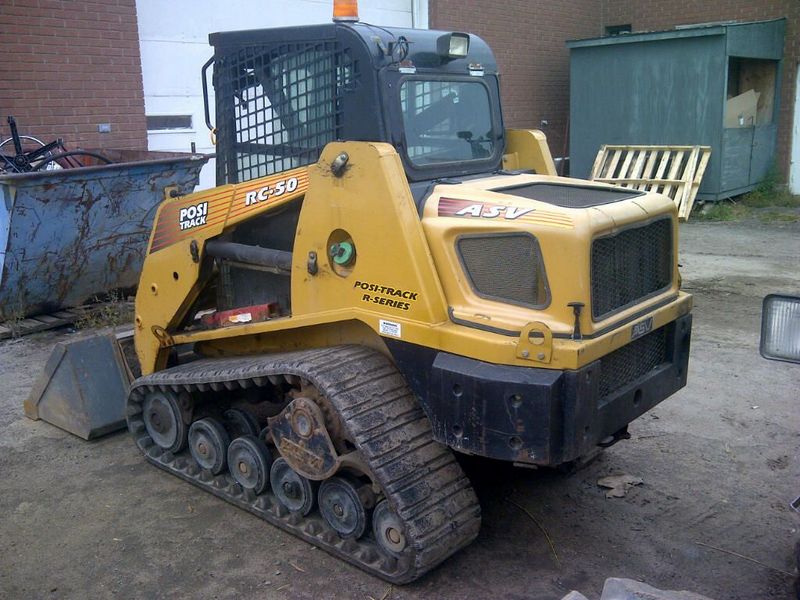

ASV RC50
Browse All ASV or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 5 ft in (1524 mm) |
| Height To Top Of Cab | 6.42 ft in (1956 mm) |
| Ground Clearance | 12.01 in (305 mm) |
| Length With Bucket | 10.67 ft in (3251 mm) |
| Length With Out Bucket | 8.34 ft in (2540 mm) |
Undercarriage
| Length Of Track On Ground | 4.92 ft in (1499 mm) |
| Track Gauge | 3.75 ft in (1143 mm) |
| Ground Contact Area | 1767.01 in2 (1.14 m2) |
| Number Of Track Rollers Per Side | 6 |
| Width Of Track | 15 in (381 mm) |
| Ground Pressure | 3.5 psi (24.14 kPa) |
Engine
| Engine Make | 2351 |
| Engine Model | 404C-22 |
| Gross Power | 50 hp (37.3 kw) |
| Power Measured @ | 2800 rpm |
| Peak Torque | 105 lb ft (142.4 Nm) |
| Displacement | 134 cu in (2.2 L) |
Operational
| Operating Weight | 6200 lb (2812.3 kg) |
| Cooling System Fluid Capacity | 2 gal (7.6 L) |
| Engine Oil Capacity | 2.8 gal (10.6 L) |
| Fuel Capacity | 15 gal (56.8 L) |
| Hydraulic System Fluid Capacity | 8 gal (30.3 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Max Speed - High Range | 8 mph (12.9 km/h) |
Loader
| Operating Load | 1900 lb (861.9 kg) |
| Tipping Angle | 3800 degrees |
Hydraulic
| Pump Flow | 16.3 gal/min (61.8 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
