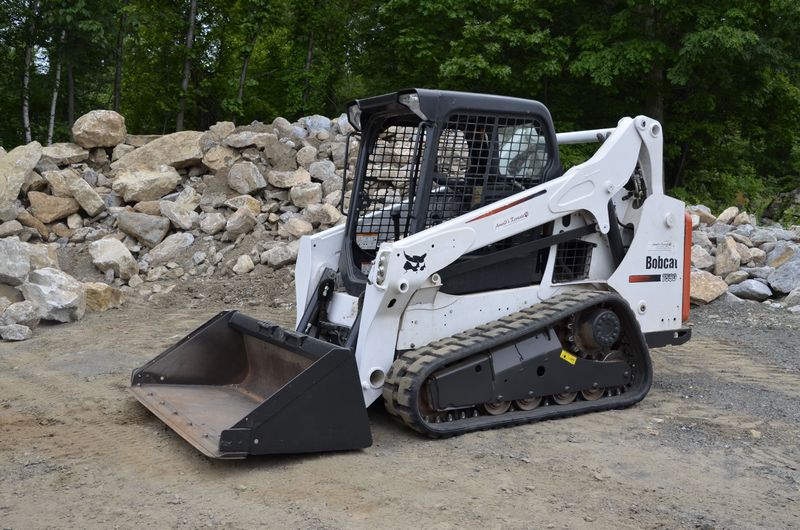

Bobcat T590
Browse All Bobcat or Multi Terrain Loader Models
Contents:
Dimensions
| Height To Top Of Cab | 6.49 ft in (1976.12 mm) |
| Reach At Max Lift And Dump | 1.61 ft in (490.22 mm) |
| Turning Radius From Center - Machine Rear | 6.67 in (169.34 mm) |
| Overall Height | 6.49 ft in (1976.12 mm) |
| Overall Length | 11.09 ft in (3378.19 mm) |
| Overall Width | 5.59 ft in (1701.8 mm) |
| Length With Out Bucket | 8.72 ft in (2656.84 mm) |
| Length With Bucket | 11.09 ft in (3378.19 mm) |
Undercarriage
| Length Of Track On Ground | 4.51 ft in (1374.14 mm) |
| Width Of Track | 12.6 in (320.05 mm) |
| Ground Pressure | 5.1 psi (35.17 kPa) |
Engine
| Fuel | Diesel |
| Emission Tier Level | Tier 4 |
| Horsepower - Gross | 66 hp (49.3 kw) |
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2607-DI-TE3B Interim Tier 4 |
| Gross Power | 61 hp (45.5 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 155.6 lb ft (211 Nm) |
| Torque Measured @ | 1425 rpm |
| Displacement | 158.7 cu in (2.7 L) |
| Bore | 3.5 in (87 mm) |
| Stroke | 4.4 in (110 mm) |
Operational
| Operating Weight | 7822 lb (3548 kg) |
| Cooling System Fluid Capacity | 3 gal (11.4 L) |
| Fuel Capacity | 36.5 gal (138.2 L) |
| Engine Oil Capacity | 2.6 gal (9.7 L) |
Loader
| Breakout Force | 4753 lb (2156 kg) |
| Operating Load | 2100 lb (952.6 kg) |
| Tipping Angle | 6000 degrees |
Hydraulic
| Pump Type | Engine driven, gear type |
| Pump Flow | 17.1 gal/min (64.8 L/min) |
| Relief Valve Pressure | 3500 psi (24131.7 kPa) |
