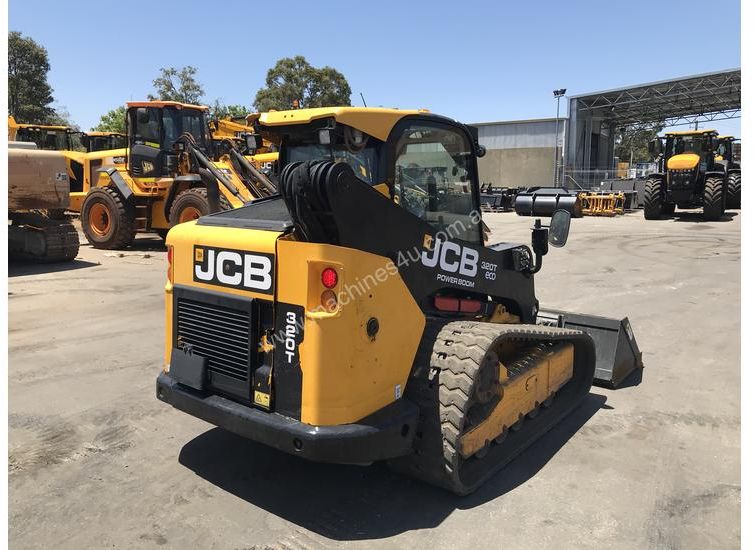

JCB 320T
Browse All JCB or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 6.24 ft in (1900 mm) |
| Height To Top Of Cab | 6.83 ft in (2080 mm) |
| Ground Clearance | 9.06 in (230 mm) |
| Clearance At Max Lift And Dump | 7.85 ft in (2390 mm) |
| Reach At Max Lift And Dump | 2.96 ft in (900 mm) |
| Angle Of Departure | 29 degrees |
| Max. Reach @ Full Height | 4.27 ft in (1.3 m) |
| Pin Height | 10.44 ft in (3.18 m) |
| Reach @ Ground Level | 3.61 ft in (1.11 m) |
| Rollback @ Ground | 30 degrees |
| Wheelbase | 6.89 ft in (2100 mm) |
| Loadover Height | 9.45 ft in (2.88 m) |
| Dig Depth | -393.7 in (-10000 mm) |
| Dump Angle | 42 degrees |
| Dump Height | 7.49 ft in (2280 mm) |
| Length With Bucket | 12.47 ft in (3800 mm) |
Undercarriage
| Width Of Track | 17.7 in (449.58 mm) |
| Ground Pressure | 4.91 psi (33.79 kPa) |
Engine
| Emissions Certification | EPA-T4F (EU St3B) |
| Fuel | Diesel |
| Engine Oil Service Interval Hours | 500 |
| Starter Motor | 4.2 KW |
| Battery | 12 V |
| Engine Model | EcoMAX TCAE-55 |
| Gross Power | 74 hp (55.2 kw) |
| Cooling System | Liquid |
| Power Measured @ | 2400 rpm |
| Peak Torque | 295.1 lb ft (400 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 268.5 cu in (4.4 L) |
| Alternator | 95 amps |
| Aspiration | Turbo |
Operational
| Operating Weight | 11569.9 lb (5248 kg) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Fuel Capacity | 27.3 gal (103.3 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Operating Voltage | 12 V |
| Max Speed - Low Range | 5.7 mph (9.2 km/h) |
Loader
| Breakout Force | 6543.4 lb (2968 kg) |
| Operating Load | 11569.9 lb (5248 kg) |
| Tipping Angle | 9144.8 degrees |
| Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Bucket Width | 74.9 in (1900 mm) |
Hydraulic
| Pump Flow | 23 gal/min (87.1 L/min) |
| Relief Valve Pressure | 3335 psi (22994 kPa) |
