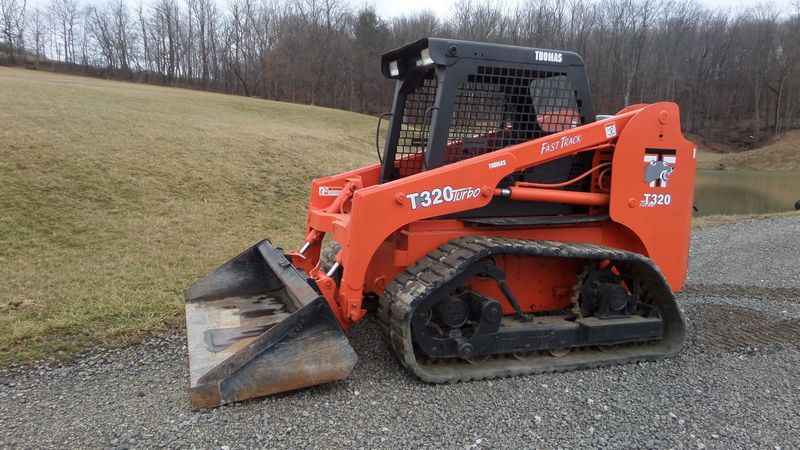

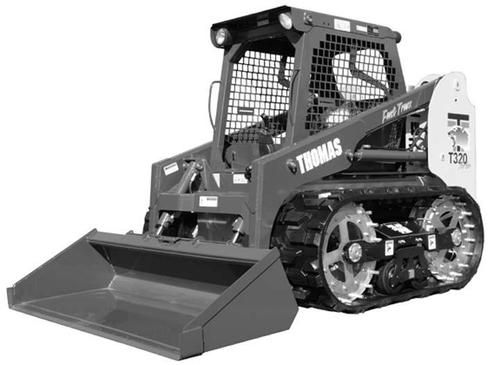

Thomas 320
Browse All Thomas or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 6.52 ft in (1986 mm) |
| Height To Top Of Cab | 7.01 ft in (2134 mm) |
| Ground Clearance | 19.2 in (487.68 mm) |
| Clearance At Max Lift And Dump | 7.91 ft in (2408 mm) |
| Reach At Max Lift And Dump | 1.93 ft in (587 mm) |
| Length With Out Bucket | 9.8 ft in (2985 mm) |
| Length With Bucket | 12.17 ft in (3708 mm) |
| Turning Radius From Center - Machine Rear | 34.91 in (886.5 mm) |
| Turning Radius From Center - Inc Bucket | 44.81 in (1138 mm) |
Undercarriage
| Width Of Track | 18 in (457 mm) |
| Ground Pressure | 5.8 psi (39.99 kPa) |
Engine
| Engine Make | 2334 |
| Engine Model | V3300T |
| Gross Power | 87.4 hp (65.2 kw) |
| Net Power | 83 hp (61.9 kw) |
| Power Measured @ | 2750 rpm |
| Peak Torque | 205 lb ft (278 Nm) |
| Displacement | 203 cu in (3.4 L) |
Operational
| Operating Weight | 10500 lb (4762.8 kg) |
| Fuel Capacity | 28.8 gal (109 L) |
| Hydraulic System Fluid Capacity | 24 gal (90.8 L) |
| Alternator Supplied Amperage | 60 amps |
| Max Speed - Low Range | 6.8 mph (10.9 km/h) |
| Max Speed - High Range | 12.4 mph (19.8 km/h) |
Loader
| Breakout Force | 7000 lb (3175.2 kg) |
| Operating Load | 3200 lb (1451.5 kg) |
| Tipping Angle | 6400 degrees |
Hydraulic
| Pump Flow | 21 gal/min (79.5 L/min) |
| Relief Valve Pressure | 3000 psi (20684.3 kPa) |
