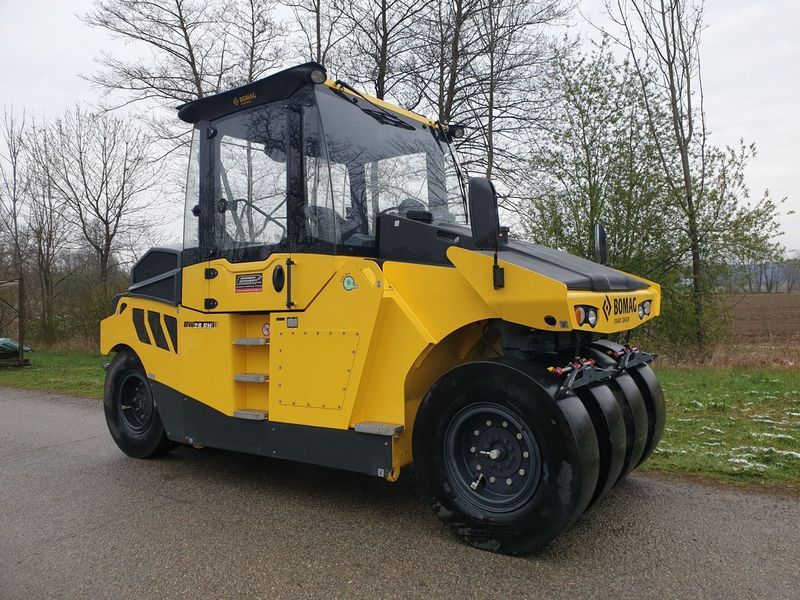

Bomag BW 28 RH
Browse All Bomag or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 194.7 in (4945.38 mm) |
| Overall Width | 6.8 ft in (2070.11 mm) |
| Height To Top Of Rops | 9.83 ft in (2994.66 mm) |
| Wheelbase | 12.72 ft in (3876.05 mm) |
| Ground Clearance | 0.92 ft in (279.41 mm) |
| Gradeability | 27 % |
Steering System
| System | 2 Punkt pivoted |
| Steering Method | Hydrostatic |
| Steering Angle | 30 degrees |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 3.6 L4 |
| Gross Power | 134.1 hp (100 kw) |
| Net Power | 134 hp (100 kw) |
Operational
| Fuel Capacity | 52.8 gal (199.9 L) |
| Water Spray Tank Fluid Capacity | 89.8 gal (340 L) |
| Max Speed | 11.8 mph (19 km/h) |
| Operating Voltage | 12 V |
Weights
| Operating Weight - Standard | 19 lb (8.7 kg) |
| Operating Weight - Max Ballast | 61.8 lb (28.1 kg) |
| Average Weight Per Wheel - Max Ballast | 7.8 lb (3.5 kg) |
Tires
| Standard Tire Size | 1100-20 18PR |
| Wheel Track/Tire Overlap | 1.3 in (33.1 mm) |
Brakes
| Parking Brake | Multi disc |
| Service Brake | Hydrostatic |
