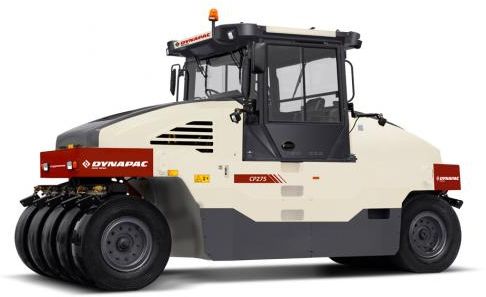

Dynapac CP275
Browse All Dynapac or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 209.06 in (5310 mm) |
| Overall Width | 7.78 ft in (2370 mm) |
| Height To Top Of Rops | 10.11 ft in (3080 mm) |
| Wheelbase | 13.95 ft in (4250 mm) |
| Ground Clearance | 1.15 ft in (350 mm) |
| Turning Radius - Outside | 29.53 ft in (9000 mm) |
Compaction
| Rolling Width | 93.4 in (2370 mm) |
| Tyre Overlap | 2.1 in (52 mm) |
| Wheel Loads_Without Ballast | 3430.4 lb (1556 kg) |
| Wheel Loads - With Max. Ballast | 7348.1 lb (3333 kg) |
| Min - Tyre Pressure | 55.2 psi (380 kPa) |
| Max - Tyre Pressure | 113.2 psi (780 kPa) |
| Water Spray System Type | Pressurized |
| Water Spray System Spray Nozzle | One per tyre |
Engine
| Engine Make | Cummins |
| Engine Model | 4BTAA3.9-C125 |
| Engine Type | Turbocharged and Charge Air Cooled |
| Gross Power | 124.8 hp (93 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Fuel Capacity | 84.6 gal (320 L) |
| Water Spray Tank Fluid Capacity | 158.6 gal (600 L) |
| Max Speed | 11.2 mph (18 km/h) |
| Operating Voltage | 24 V |
Weights
| Operating Weight - Standard | 30864.8 lb (14000 kg) |
| Operating Weight - Max Ballast | 66138.7 lb (30000 kg) |
