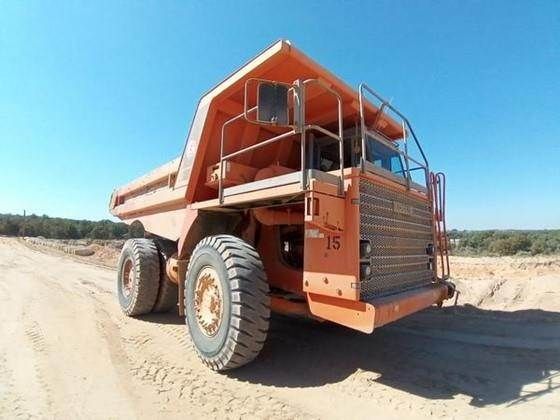

Hitachi EH700-2
Browse All Hitachi or Rock Truck Models
Contents:
Dimensions
| Overall Length | 28.42 ft in (8660 mm) |
| Overall Width | 15.62 ft in (4760 mm) |
| Overall Height | 14.18 ft in (4320 mm) |
| Wheelbase | 12.41 ft in (3780 mm) |
| Ground Clearance | 1.68 ft in (510 mm) |
| Dump Height | 26.68 ft in (8130 mm) |
| Dump Ground Clearance | 1.58 ft in (480 mm) |
Dump
| Dump Angle | 60 degrees |
| Lower Time | 14 sec |
| Load Capacity - Struck | 22.24 yd3 (17 m3) |
| Raise Time | 13.9 sec |
| Load Capacity - Heaped | 31.4 yd3 (24 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSX15-525 |
| Gross Power | 525 hp (391.5 kw) |
| Net Power | 480 hp (358 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 915.4 cu in (15 L) |
| Aspiration | turbocharged / aftercooled |
Operational
| Fuel Capacity | 120 gal (454 L) |
| Cooling System Fluid Capacity | 42.1 gal (159 L) |
| Engine Oil Capacity | 16.2 gal (61 L) |
| Diff And Final Drive Fluid Capacity | 13.3 gal (50.3 L) |
| Steering System Fluid Capacity | 25.7 gal (97 L) |
| Brake/Hoist System Fluid Capacity | 47.1 gal (178 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Tire Size | 18R33(**)E4 Radial |
Transmission
| Transmission Type | Allison M5610A planetary, full automatic shift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 2 |
| Max Speed | 47.3 mph (76 km/h) |
Weights
| Empty Weight | 70327.5 lb (31900 kg) |
| Loaded Weight | 154103.2 lb (69900 kg) |
| Weight Distribution Front - Empty | 49 % |
| Weight Distribution Rear - Empty | 51 % |
| Weight Distribution Front - Loaded | 33 % |
| Weight Distribution Rear - Loaded | 67 % |
