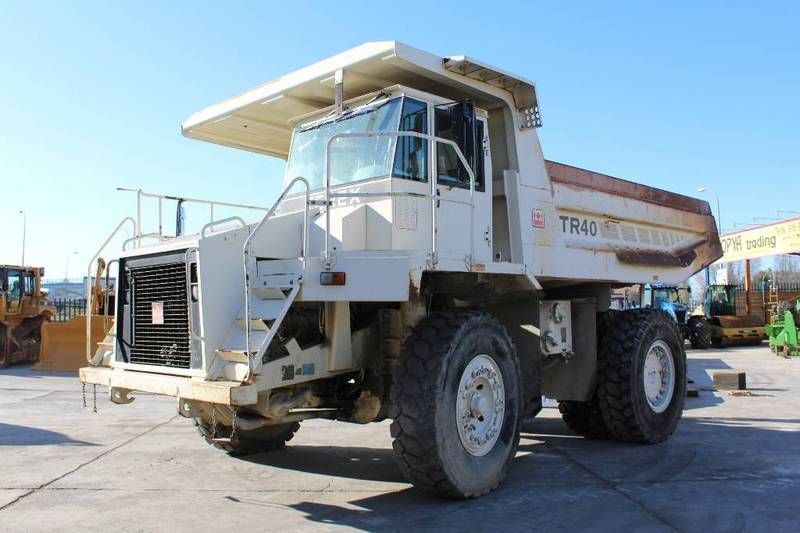

Terex TR40
Browse All Terex or Rock Truck Models
Contents:
Dimensions
| Overall Length | 28.55 ft in (8700 mm) |
| Overall Width | 14.34 ft in (4370 mm) |
| Overall Height | 13.69 ft in (4170 mm) |
| Wheelbase | 12.93 ft in (3940 mm) |
| Ground Clearance | 1.68 ft in (510 mm) |
| Dump Height | 24.22 ft in (7380 mm) |
| Dump Ground Clearance | 1.68 ft in (510 mm) |
Dump
| Dump Angle | 58 degrees |
| Load Capacity - Struck | 22.5 yd3 (17.21 m3) |
| Load Capacity - Heaped | 31.2 yd3 (23.86 m3) |
| Rated Payload | 80000 lb (36287.4 kg) |
| Lower Time | 9 sec |
| Raise Time | 13 sec |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | N14-C475 |
| Net Power | 444 hp (331.1 kw) |
| Gross Power | 475 hp (354.3 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1475.2 lb ft (2000 Nm) |
| Aspiration | Turbocharged and Aftercooled |
| Displacement | 855 cu in (14.1 L) |
| Torque Measured @ | 1300 rpm |
Operational
| Fuel Capacity | 160 gal (605.7 L) |
| Cooling System Fluid Capacity | 31.7 gal (120 L) |
| Engine Oil Capacity | 10.8 gal (40.9 L) |
| Diff And Final Drive Fluid Capacity | 15.8 gal (59.9 L) |
| Steering System Fluid Capacity | 22.5 gal (85.2 L) |
| Hydraulic System Fluid Capacity | 97 gal (367.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 18.00 R33 |
Transmission
| Transmission Type | Allison M5600A |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 2 |
| Max Speed | 36.1 mph (58 km/h) |
Weights
| Empty Weight | 75839.1 lb (34400 kg) |
| Loaded Weight | 155866.9 lb (70700 kg) |
| Weight Distribution Front - Empty | 48 % |
| Weight Distribution Rear - Empty | 52 % |
| Weight Distribution Front - Loaded | 34 % |
| Weight Distribution Rear - Loaded | 66 % |
