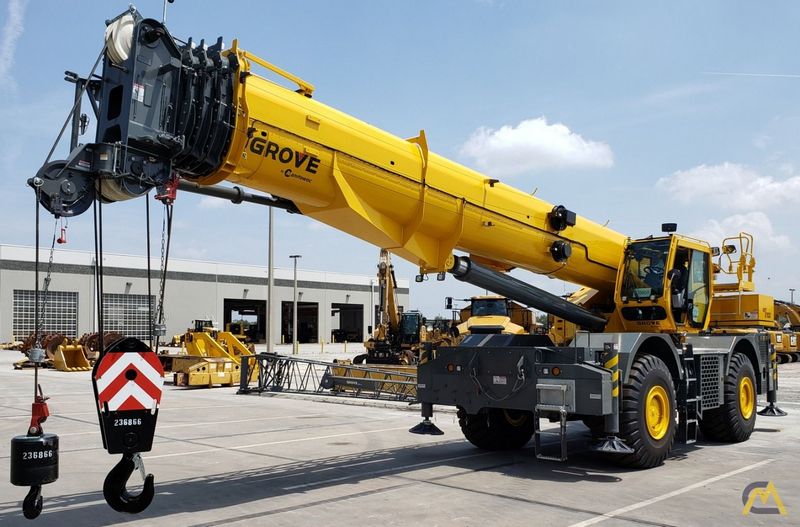

Grove GRT8100
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 41.2 ft in (12.56 m) |
| Max Height @ Max Raise Angle - No Jib | 72.41 ft in (22.07 m) |
| Min Operating Radius | 20 ft in (6.1 m) |
| Max Elevating Angle | 80 degrees |
| Max Operating Radius | 30 ft in (9.15 m) |
| Max Lift Capacity | 109999.99 lb (49895.16 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 49.59 ft in (15114 mm) |
| Transport Width | 10.95 ft in (3335 mm) |
| Transport Height | 12.29 ft in (3746 mm) |
| Wheelbase | 100.16 in (2544 mm) |
| Width W/ Outriggers Extended | 24.01 ft in (7316 mm) |
| Carrier/Base Length | 26522.31 ft in (8084 m) |
| Gradeability | 70 % |
Engine
| Emissions Certification | Tier 4F |
| Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSB6 |
| Gross Power | 275 hp (205.1 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 730.2 lb ft (990 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 427.2 cu in (7 L) |
| Aspiration | Turbo-charged |
Operational
| Operating Weight | 90669.6 lb (41127 kg) |
| Fuel Capacity | 82.5 gal (312 L) |
| Tire Size | 23.5 x 25 – 24 Bias ply rating |
Transmission
| Transmission Type | Rangeshift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed | 24.1 mph (38.8 km/h) |
Swing Mechanism
| Swing Speed | 2 rpm |
Weights
| Counterweight | 22000 lb (9979 kg) |
