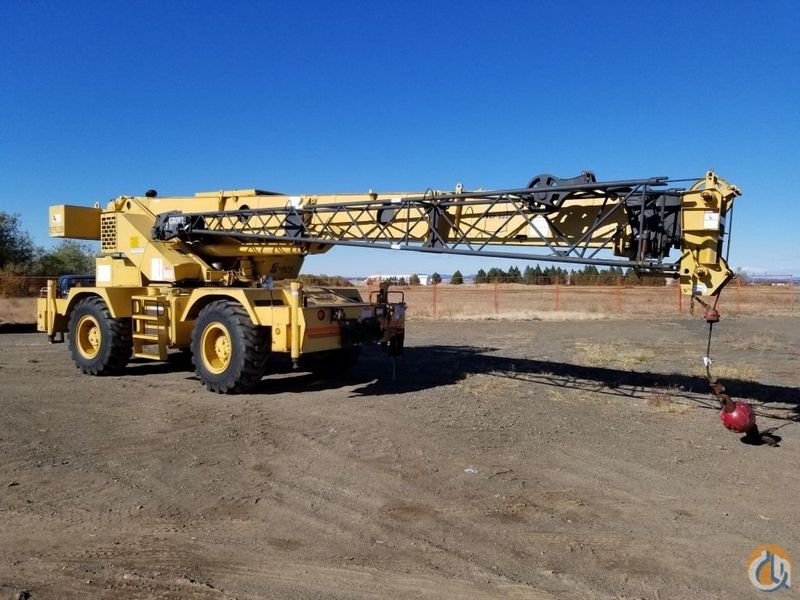

Grove RT522B
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 30 ft in (9.15 m) |
| Max Height @ Max Raise Angle - No Jib | 78 ft in (23.78 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 78 degrees |
| Max Operating Radius | 95 ft in (28.96 m) |
| Swing Speed | 3 rpm |
| Max Lift Capacity | 44000 lb (19958.07 kg) |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 35.96 ft in (10959 mm) |
| Transport Width | 8.46 ft in (2578 mm) |
| Transport Height | 10.37 ft in (3158 mm) |
| Wheelbase | 10.09 in (3073 mm) |
| Width W/ Outriggers Extended | 18.51 ft in (5639 mm) |
| Carrier/Base Length | 21.35 ft in (6505 m) |
| Upper Structure Tail Swing Radius | 11.12 ft in (3387 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 4BTA3.9 |
| Gross Power | 129.7 hp (96.7 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 360 lb ft (488.1 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 44648 lb (20252 kg) |
| Fuel Capacity | 39.9 gal (151 L) |
| Hydraulic System Fluid Capacity | 81.9 gal (310 L) |
| Operating Voltage | 12 V |
| Tire Size | 17.5X25-20PR |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 21.8 mph (35 km/h) |
