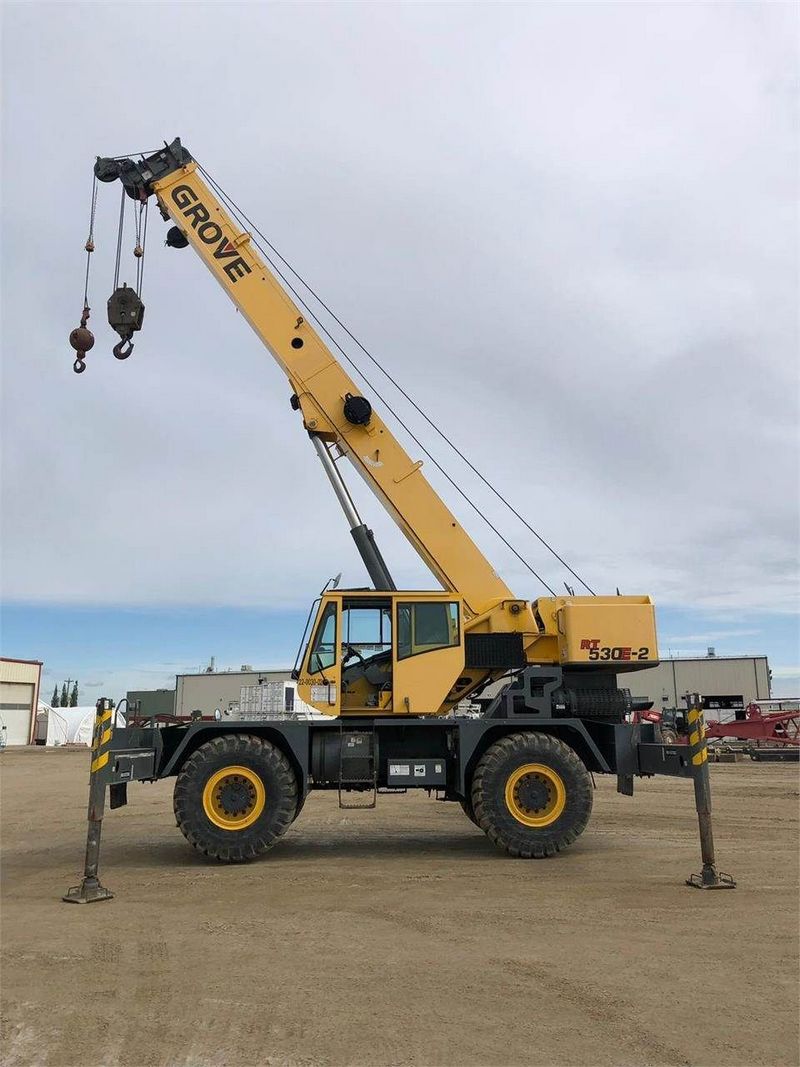

Grove RT530E-2
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 29 ft in (8.84 m) |
| Max Height @ Max Raise Angle - No Jib | 95 ft in (28.96 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 76 degrees |
| Max Operating Radius | 85 ft in (25.91 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 60000 lb (27215.55 kg) |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 35.84 ft in (10921 mm) |
| Transport Width | 8.55 ft in (2606 mm) |
| Transport Height | 10.62 ft in (3235 mm) |
| Wheelbase | 11.82 in (3600 mm) |
| Ground Clearance | 1.56 ft in (475 mm) |
| Width W/ Outriggers Extended | 20 ft in (6096 mm) |
| Carrier/Base Length | 23.29 ft in (7098 m) |
| Upper Structure Tail Swing Radius | 12.46 ft in (3796 mm) |
Engine
| Emissions Certification | Tier4F |
| Engine Make | 2347 |
| Engine Model | QSB 6.7L |
| Gross Power | 163.7 hp (122 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 539.9 lb ft (732 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 408.9 cu in (6.7 L) |
Operational
| Operating Weight | 56995 lb (25852.5 kg) |
| Fuel Capacity | 58.2 gal (220 L) |
| Hydraulic System Fluid Capacity | 83.6 gal (316.5 L) |
| Operating Voltage | 12 V |
| Tire Size | 20.5x25 -24bias |
Transmission
| Transmission Type | Range-shift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
Swing Mechanism
| Swing Speed | 2 rpm |
Weights
| Counterweight | 8415.1 lb (3817 kg) |
Hydraulic System
| Max Operating Pressure | 4000 PSI |
