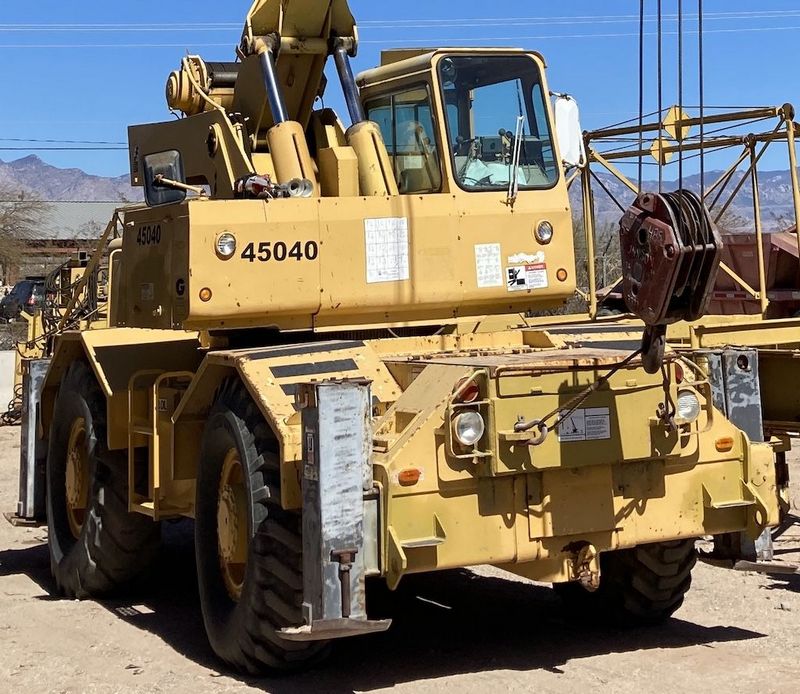

Grove RT620S
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 27.89 ft in (8.5 m) |
| Max Height @ Max Raise Angle - No Jib | 69.89 ft in (21.3 m) |
| Max Elevating Angle | 75 degrees |
| Swing Speed | 3.1 rpm |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 31.56 ft in (9617 mm) |
| Transport Width | 7.97 ft in (2429 mm) |
| Transport Height | 8.75 ft in (2667 mm) |
| Wheelbase | 114.02 in (2896 mm) |
| Ground Clearance | 2.17 ft in (660 mm) |
| Width W/ Outriggers Extended | 17.63 ft in (5372 mm) |
| Carrier/Base Length | 20344.49 ft in (6201 m) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | Cummins Diesel |
| Engine Model | V-504C |
| Net Power | 142 hp (105.9 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 303 lb ft (410.9 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 504 cu in (8.3 L) |
| Bore | 4.7 in (117 mm) |
| Stroke | 3.8 in (95 mm) |
| Aspiration | Naturally Aspirated |
Operational
| Operating Weight | 47981.5 lb (21764 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 82.6 gal (312.7 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 16.00 x 24 |
Transmission
| Transmission Type | Full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 28.6 mph (45.9 km/h) |
