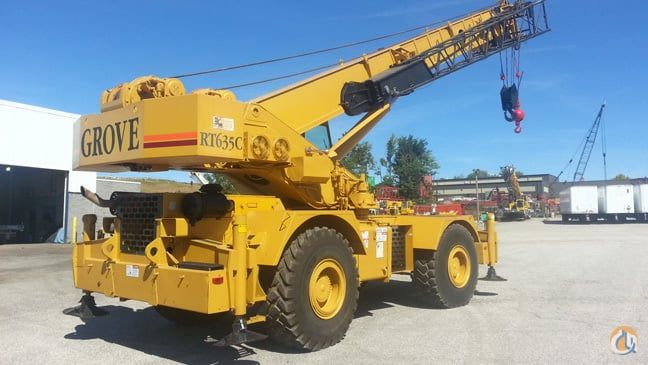

Grove RT635C
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 34 ft in (10.37 m) |
| Max Height @ Max Raise Angle - No Jib | 105 ft in (32.01 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 78 degrees |
| Max Operating Radius | 95 ft in (28.96 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 70000 lb (31751.47 kg) |
| Swing Speed | 2.5 rpm |
Dimensions
| Transport Length | 41.16 ft in (12543 mm) |
| Transport Width | 9.84 ft in (2997 mm) |
| Transport Height | 11.96 ft in (3645 mm) |
| Wheelbase | 12.5 in (3810 mm) |
| Ground Clearance | 1.53 ft in (464 mm) |
| Width W/ Outriggers Extended | 22.01 ft in (6706 mm) |
| Carrier/Base Length | 25.21 ft in (7681 m) |
| Upper Structure Tail Swing Radius | 20 ft in (6096 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | 6BT5.9 |
| Gross Power | 151.6 hp (113 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 400 lb ft (542.4 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 64842.4 lb (29412 kg) |
| Fuel Capacity | 60 gal (227.2 L) |
| Hydraulic System Fluid Capacity | 103.1 gal (390 L) |
| Operating Voltage | 12 V |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
