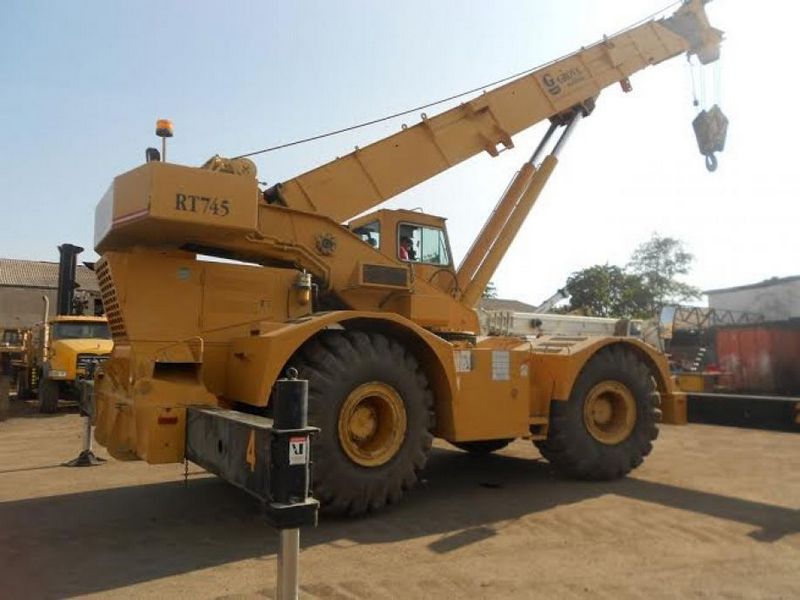

Grove RT745
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 34 ft in (10.37 m) |
| Max Height @ Max Raise Angle - No Jib | 104 ft in (31.7 m) |
| Max Elevating Angle | 76 degrees |
| Swing Speed | 2.6 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 42.29 ft in (12890 mm) |
| Transport Width | 10.92 ft in (3327 mm) |
| Transport Height | 12.38 ft in (3772 mm) |
| Wheelbase | 12.5 in (3810 mm) |
| Ground Clearance | 1.34 ft in (406 mm) |
| Width W/ Outriggers Extended | 25 ft in (7620 mm) |
| Carrier/Base Length | 25.81 ft in (7864 m) |
| Upper Structure Tail Swing Radius | 13.59 ft in (4140 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | 6BTA5.9 |
| Gross Power | 191.8 hp (143 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 458 lb ft (621 Nm) |
| Torque Measured @ | 1700 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 83000 lb (37648.2 kg) |
| Fuel Capacity | 60 gal (227.2 L) |
| Hydraulic System Fluid Capacity | 154 gal (583 L) |
| Operating Voltage | 12 V |
| Tire Size | 21.00X25-24PR |
Transmission
| Transmission Type | remote mounted powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 20.4 mph (32.7 km/h) |
