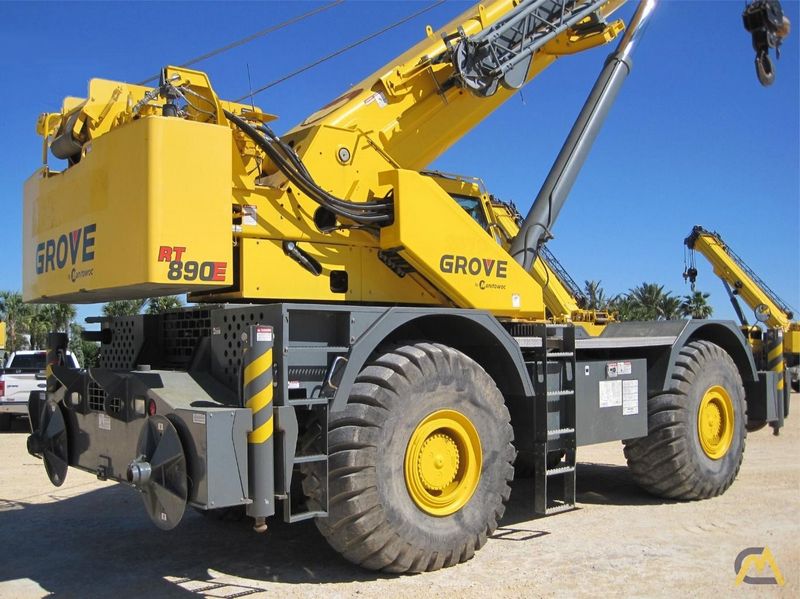

Grove RT890E
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 38 ft in (11.59 m) |
| Max Height @ Max Raise Angle - No Jib | 142 ft in (43.29 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 78 degrees |
| Max Operating Radius | 125 ft in (38.1 m) |
| Number Of Sections | 5 |
| Max Lift Capacity | 180000 lb (81646.64 kg) |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 45.87 ft in (13979 mm) |
| Transport Width | 10.96 ft in (3340 mm) |
| Transport Height | 12.33 ft in (3758 mm) |
| Wheelbase | 13.84 in (4216 mm) |
| Ground Clearance | 1.11 ft in (337 mm) |
| Width W/ Outriggers Extended | 24 ft in (7315 mm) |
| Carrier/Base Length | 28.12 ft in (8569 m) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSB 6.7L |
| Gross Power | 275 hp (205 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 728 lb ft (987 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 115976 lb (52605.9 kg) |
| Fuel Capacity | 72.2 gal (273 L) |
| Hydraulic System Fluid Capacity | 262.9 gal (995 L) |
| Operating Voltage | 12 V |
| Tire Size | 29.5x25-34bias |
Transmission
| Transmission Type | full rangeshift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 21.8 mph (35 km/h) |
| Max Speed - Reverse | 21.8 mph (35 km/h) |
