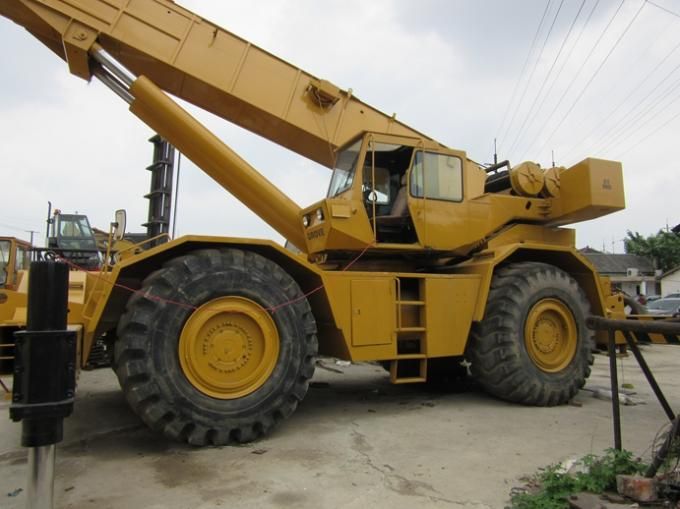

Grove RT980
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36 ft in (10.98 m) |
| Max Height @ Max Raise Angle - No Jib | 146 ft in (44.51 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 80 degrees |
| Max Operating Radius | 130 ft in (39.63 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 160000 lb (72574.79 kg) |
| Swing Speed | 1.8 rpm |
Dimensions
| Transport Length | 45.48 ft in (13862 mm) |
| Transport Width | 12.32 ft in (3754 mm) |
| Transport Height | 13.32 ft in (4058 mm) |
| Wheelbase | 15.42 in (4699 mm) |
| Ground Clearance | 1.65 ft in (501 mm) |
| Width W/ Outriggers Extended | 26.5 ft in (8076 mm) |
| Carrier/Base Length | 29.76 ft in (9068 m) |
| Upper Structure Tail Swing Radius | 14.25 ft in (4343 mm) |
Engine
| Engine Make | 2350 |
| Engine Model | 6-7IT |
| Air Cleaner | Dry type |
| Net Power | 230 hp (171.6 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 672 lb ft (911.2 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 426 cu in (7 L) |
| Bore | 4.3 in (108 mm) |
| Stroke | 5 in (127 mm) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 131729 lb (59751.3 kg) |
| Fuel Capacity | 100 gal (378.6 L) |
| Hydraulic System Fluid Capacity | 375 gal (1419.6 L) |
| Cooling System Fluid Capacity | 14.6 gal (54.9 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 33.25x35-32PR |
Transmission
| Transmission Type | remote mounted full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 18 mph (29 km/h) |
Hydraulic
| Maximum Operating Pressure | 2500 psi (17236.9 kPa) |
| Pump Flow Capacity | 317 gal/min (1200 L/min) |
