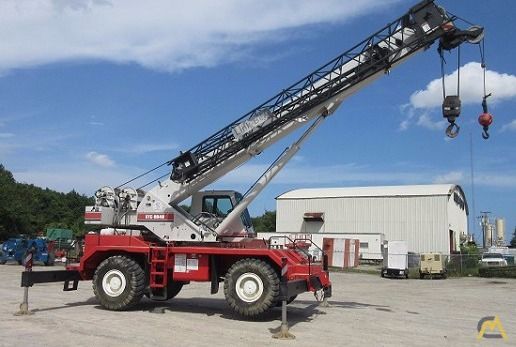

Link-Belt RTC8040 Series II
Browse All Link-Belt or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32.81 ft in (10 m) |
| Max Height @ Max Raise Angle - No Jib | 104.99 ft in (32 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 78 degrees |
| Max Operating Radius | 95 ft in (28.96 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 60000 lb (27215.55 kg) |
| Swing Speed | 2.5 rpm |
Dimensions
| Transport Length | 41.41 ft in (12620 mm) |
| Transport Width | 10.86 ft in (3310 mm) |
| Transport Height | 11.98 ft in (3650 mm) |
| Wheelbase | 12.57 in (3830 mm) |
| Ground Clearance | 2.14 ft in (650 mm) |
| Width W/ Outriggers Extended | 22.51 ft in (6860 mm) |
| Carrier/Base Length | 25.63 ft in (7810 m) |
| Upper Structure Tail Swing Radius | 11.26 ft in (3430 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6BT 5.9L |
| Gross Power | 165 hp (123.1 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 440 lb ft (596.6 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 359 cu in (5.9 L) |
Operational
| Operating Weight | 38799.2 lb (17599 kg) |
| Fuel Capacity | 75 gal (283.9 L) |
| Hydraulic System Fluid Capacity | 80.1 gal (303 L) |
| Engine Oil Capacity | 4.4 gal (16.3 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
| Tire Size | 23.5x25-20 ply |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 25.7 mph (41.3 km/h) |
| Max Speed - Reverse | 18.4 mph (29.6 km/h) |
