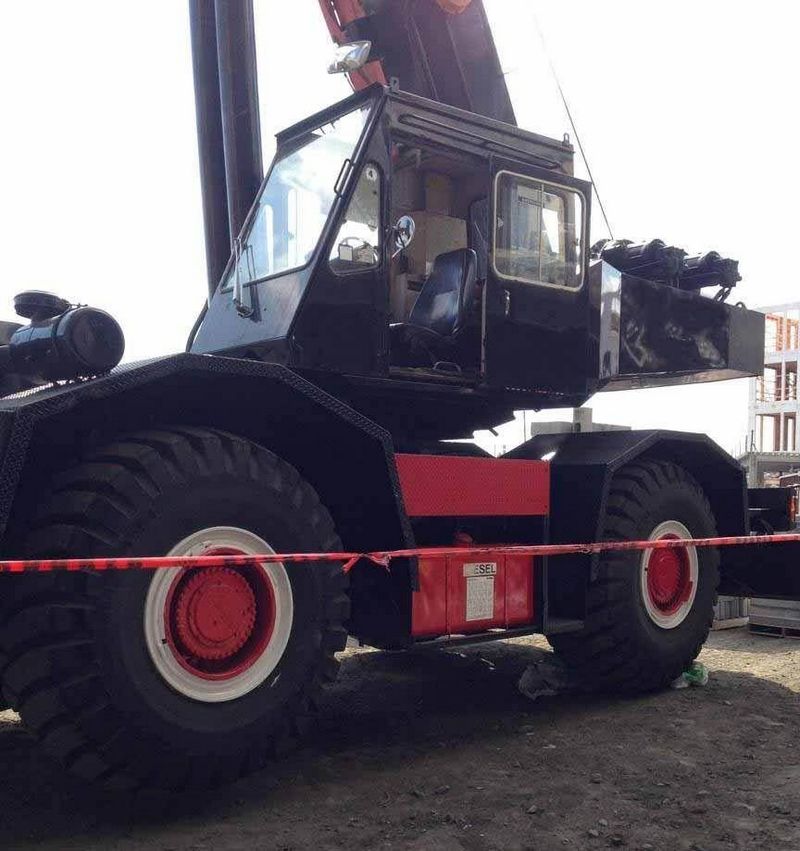

Tadano TR400E
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33.8 ft in (10.3 m) |
| Max Height @ Max Raise Angle - No Jib | 106.63 ft in (32.5 m) |
| Max Elevating Angle | 80 degrees |
| Swing Speed | 2.21 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 43.05 ft in (13120 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.31 ft in (3750 mm) |
| Wheelbase | 151.58 in (3850 mm) |
| Ground Clearance | 1.45 ft in (440 mm) |
| Width W/ Outriggers Extended | 24.94 ft in (7600 mm) |
| Carrier/Base Length | 26558.4 ft in (8095 m) |
| Upper Structure Tail Swing Radius | 13.24 ft in (4035 mm) |
Engine
| Fuel Filter | Fullflow with replacement element |
| Radiator Core Type | Fin and tube core, thermostat controlled |
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D22 |
| Gross Power | 186.5 hp (139 kw) |
| Cooling System | Liquid pressurized, recirculating by-pass |
| Air Cleaner | Dry type, replacement element |
| Net Power | 179.7 hp (134 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 463 lb ft (627.8 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 680 cu in (11.2 L) |
| Bore | 5.2 in (130 mm) |
| Stroke | 5.6 in (140 mm) |
| Oil Filter | Fullflow with replacement element |
| Aspiration | Naturally aspirated |
Operational
| Operating Weight | 85669.5 lb (38859 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 195.5 gal (740 L) |
| Operating Voltage | 24 V |
| Tire Size | 21.00 x 25 - 24 PR |
Transmission
| Transmission Type | Full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 13.6 mph (21.8 km/h) |
