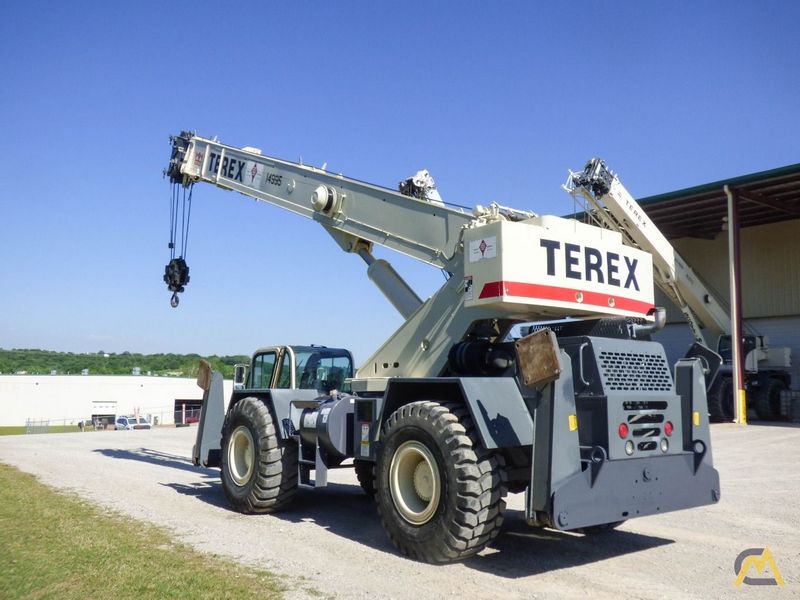

Terex CD225
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 26.42 ft in (8.06 m) |
| Max Height @ Max Raise Angle - No Jib | 61.42 ft in (18.72 m) |
| Max Elevating Angle | 76 degrees |
| Swing Speed | 3 rpm |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 35.34 ft in (10770 mm) |
| Transport Width | 8.01 ft in (2440 mm) |
| Transport Height | 11.16 ft in (3400 mm) |
| Wheelbase | 133.86 in (3400 mm) |
| Ground Clearance | 1.51 ft in (460 mm) |
| Width W/ Outriggers Extended | 14.51 ft in (4420 mm) |
| Carrier/Base Length | 22736.23 ft in (6930 m) |
| Upper Structure Tail Swing Radius | 8.99 ft in (2740 mm) |
Engine
| Air Filter Type | Dry type |
| Number Of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | 4BA3.9 |
| Gross Power | 130 hp (97 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 368.1 lb ft (499 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 238.7 cu in (4 L) |
| Bore | 4.1 in (102 mm) |
| Stroke | 4.8 in (120 mm) |
| Aspiration | Turbocharged and aftercooled |
Operational
| Operating Weight | 42534 lb (19293.1 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 102 amps |
| Tire Size | 14.00 x 24, 20 P.R |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 24.5 mph (39.4 km/h) |
