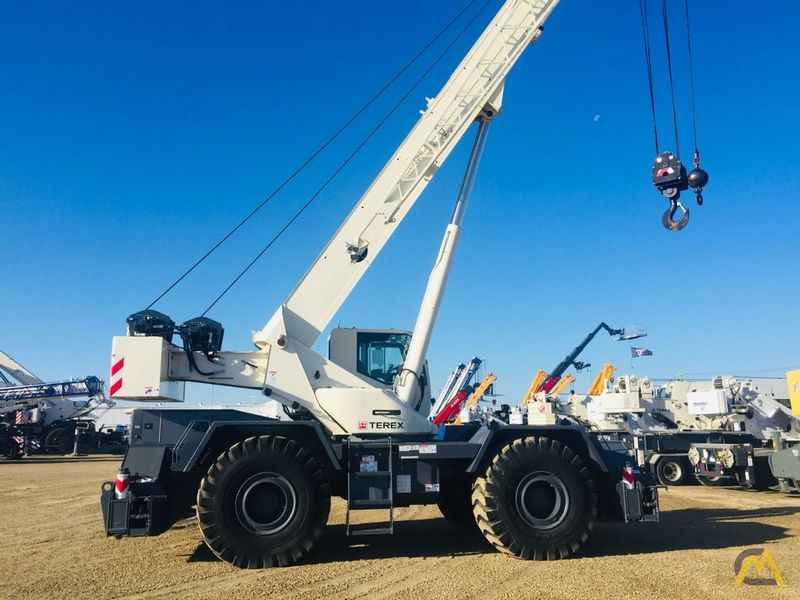

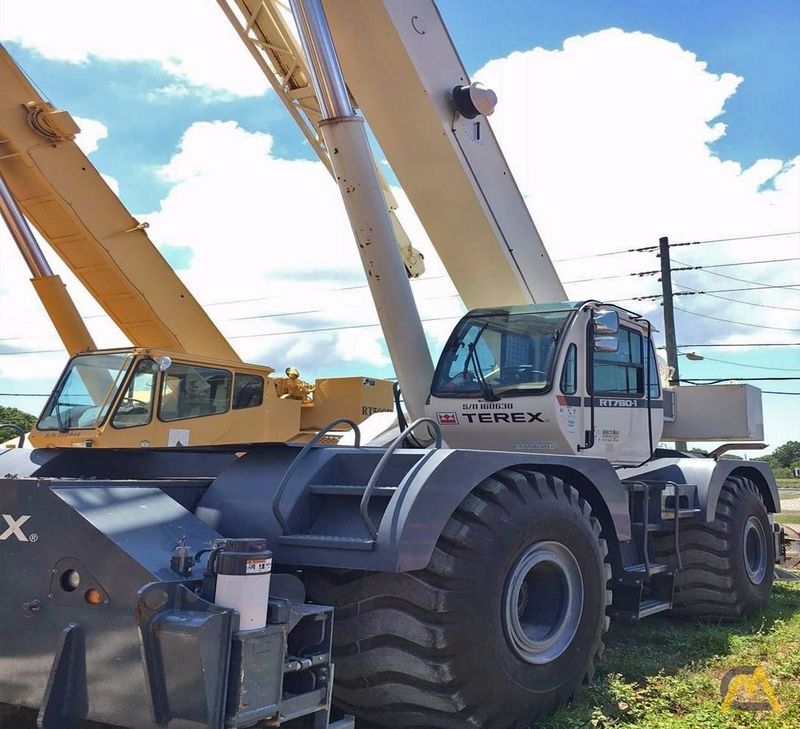

Terex RT780-1
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 126 ft in (38.41 m) |
| Max Elevating Angle | 78 degrees |
| Swing Speed | 2.25 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 48 ft in (14630.4 mm) |
| Transport Width | 8.7 ft in (2651.76 mm) |
| Transport Height | 13.1 ft in (3992.88 mm) |
| Wheelbase | 13.2 in (335.28 mm) |
| Ground Clearance | 1.11 ft in (335.28 mm) |
| Width W/ Outriggers Extended | 11.4 ft in (3474.72 mm) |
| Carrier/Base Length | 27.1 ft in (8.27 m) |
| Upper Structure Tail Swing Radius | 13.12 ft in (3998.98 mm) |
Engine
| Emissions Certification | Tier 4 |
| Number Of Cylinders | 6 |
| Engine Model | Cummins QSB6.7 |
| Gross Power | 260 hp (193.9 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 730 lb ft (989.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Fuel Type | Ultra Low Sulfur Diesel |
| Aspiration | Turbocharger with intercooler |
Operational
| Auxiliary Hydraulic Flow | 52.7 gal/min (199.5 L/min) |
| Fuel Capacity | 80 gal (302.9 L) |
| Hydraulic System Fluid Capacity | 178 gal (673.9 L) |
| Tire Size | 29.5 X 25-28PR |
Transmission
| Transmission Type | Powershift transmission with torque converter |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed | 25 mph (40.3 km/h) |
| Drawbar Pull | 13800 lb (6259.6 kg) |
Weights
| Counterweight | 15200 lb (6894.7 kg) |
