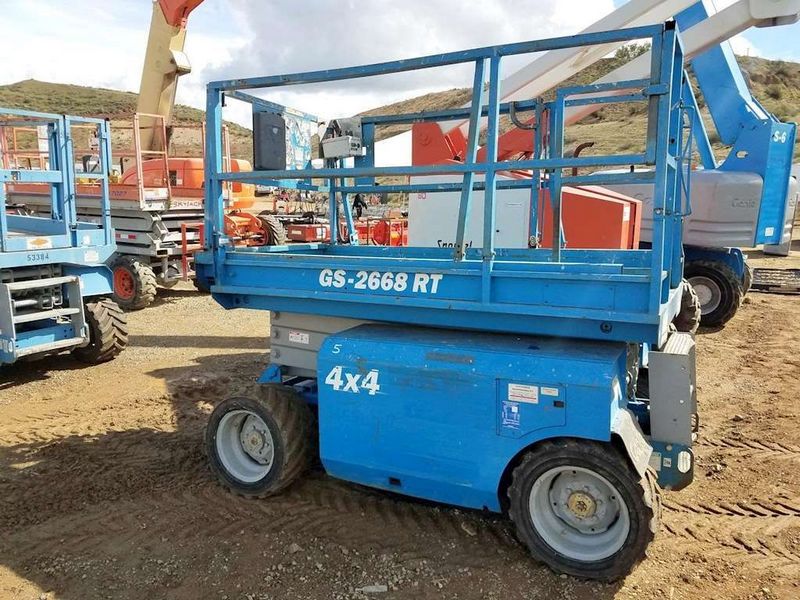

Genie GS2668RT
Browse All Genie or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 8.76 in (2670 mm) |
| Wheelbase | 5.68 ft in (1730 mm) |
| Overall Width | 5.68 ft in (1730 mm) |
| Height W/ Rails | 7.62 ft in (2320 mm) |
| Ground Clearance | 7.49 in (190 mm) |
| Height W/O Rails | 5.58 ft in (1700 mm) |
| Turning Radius | 12.08 ft in (3680 mm) |
Platform
| Max Platform Height | 25.99 ft in (7920 mm) |
| Deck Extension | 57.09 in (1450 mm) |
| Platform Inner Length | 98.82 in (2510 mm) |
| Platform Inner Width | 61.03 in (1550 mm) |
| Max Working Height | 32.55 ft in (9920 mm) |
| Max Platform Weight Capacity | 1250.03 lb (567 kg) |
Engine
| Engine Make | 2334 |
| Gross Power | 20 hp (15 kw) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 6373.6 lb (2891 kg) |
| Fuel Capacity | 15.1 gal (56.8 L) |
| Hydraulic System Fluid Capacity | 16.6 gal (62.5 L) |
| Max Speed | 3.8 mph (6.1 km/h) |
| Tire Size | 12x23.5 |
