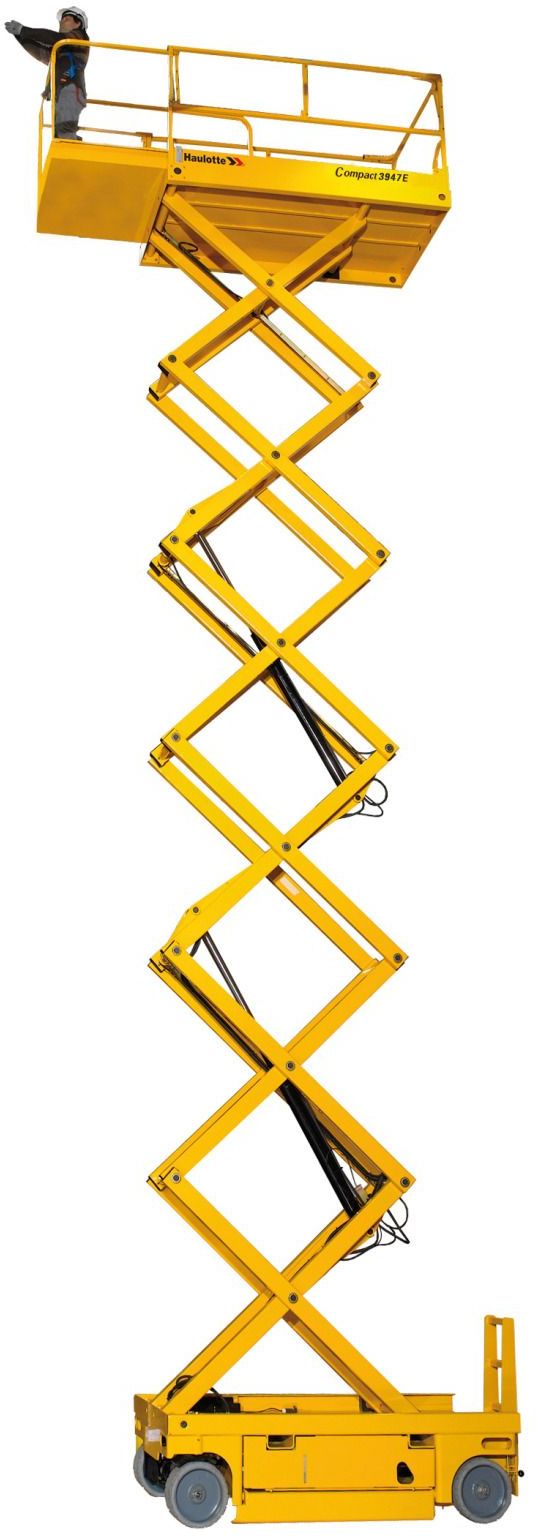

Haulotte COMPACT 3947 E
Browse All Haulotte or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 98.4 in (2499.36 mm) |
| Wheelbase | 6.1 ft in (1859.28 mm) |
| Overall Width | 3.11 ft in (947.93 mm) |
| Ground Clearance | 6 in (152.4 mm) |
| Overall Height | 8.2 ft in (2499.36 mm) |
| Gradeability | 23 % |
| Turning Radius | 8.2 ft in (2499.36 mm) |
Platform
| Max Platform Height | 38.11 ft in (11615.93 mm) |
| Extended Platform Length | 10.7 ft in (3261.36 mm) |
| Lower Time | 50 sec |
| Platform Extension Length | 3 ft in (914.4 mm) |
| Platform Length - Outside | 7.7 ft in (2346.96 mm) |
| Platform Width - Outside | 3.11 ft in (947.93 mm) |
| Lift Time | 61 sec |
| Max Working Height | 44.11 ft in (13444.73 mm) |
| Max Platform Weight Capacity | 770 lb (349.27 kg) |
Engine
| System Voltage | 24 V |
| Battery Amp Hours | 340 |
Operational
| Operating Weight | 7236 lb (3282.2 kg) |
| Hydraulic System Fluid Capacity | 7 gal (26.5 L) |
| Max Speed | 1.7 mph (2.8 km/h) |
| Tire Size | 15x5 |
