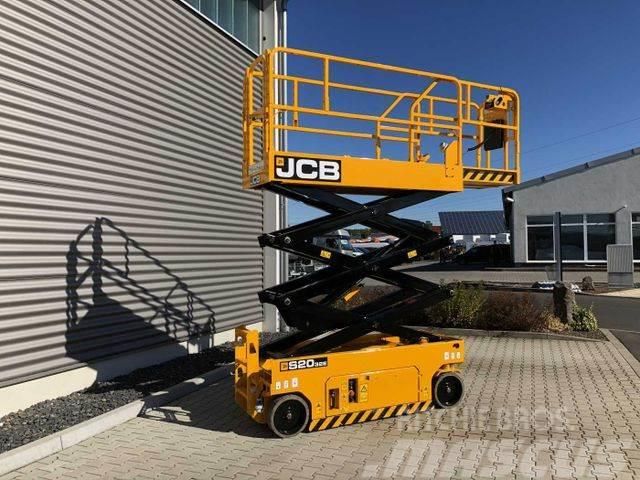

JCB S2032E
Browse All JCB or Scissor Lift Models
Contents:
Dimensions
| Wheelbase | 73 in (1854.2 mm) |
| Ground Clearance | 4 in (101.6 mm) |
| Solid Tyre Dimensions | 305 x 115 mm, (12 x 4.5)in |
| Turning Radius - Outside | 6.11 ft in (1862.33 mm) |
| Weight | 4043.28 lb (1834 kg) |
Platform
| Max Platform Height | 20.8 ft in (6339.84 mm) |
| Max Working Height | 26.8 ft in (8168.64 mm) |
| Extension Outreach | 2.96 ft in (0.9 m) |
| Max. Allowable Slope (Front/Back) | 3 degrees |
| Overall Height (Stowed, Guardrail Folded) | 6.01 ft in (1.83 m) |
| Overall Height (Stowed, Guardrail Unfolded) | 7.29 ft in (2.23 m) |
| Overall Length (Stowed , Guardrail Folded) | 7.85 ft in (2.39 m) |
| Overall Width (Stowed) | 2.66 ft in (0.81 m) |
| Max. Allowable Side Force (Outdoor) | 45 lb ft (61.02 Nm) |
| Max Allowable Slope (Side/Side) | 1.5 degrees |
| Max Allowable Side Force (Indoor) | 90 lb ft (122.03 Nm) |
| Max Allowable Wind Speed (Outdoor) | 28 mph (45.07 km/h) |
| Max Driving Speed (Raised) | 0.5 mph (0.81 km/h) |
| Max Driving Speed (Stowed) | 2 mph (3.22 km/h) |
Electrical System
| Power Unit | 4.5 hp (3.3 kw) |
| Input Voltage Of Charger | 100-24 VAc |
| Output Voltage Of Charger | 25 A |
| Battery | 6V x 4 (225) |
Engine
| Engine Model | S2032E |
Operational
| Load Capacity | 1851.9 lb (840 kg) |
Hydraulic System
| System Pressure | 3481 psi (24000.1 kPa) |
| Hydraulic System Tank | 4.8 gal (18 L) |
| Hydraulic Oil Capacity(Power Angle Tilt Dozer) | 3.7 gal (14 L) |
Brakes
| Drive And Steer Model | 2, front-wheel |
| Brakes Type | 2, rear-wheel |
| Gradeability | 25 |
