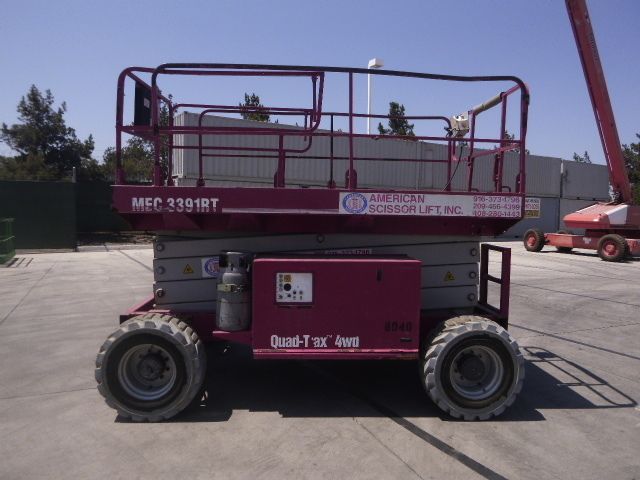

MEC 3391RT
Browse All MEC or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 12.01 in (3660 mm) |
| Wheelbase | 8.54 ft in (2600 mm) |
| Overall Width | 7.58 ft in (2310 mm) |
| Height W/ Rails | 9.13 ft in (2780 mm) |
| Ground Clearance | 12 in (304.8 mm) |
| Height W/O Rails | 6.57 ft in (2000 mm) |
| Turning Radius | 16.25 ft in (4950 mm) |
Platform
| Max Platform Height | 33.01 ft in (10060 mm) |
| Deck Extension | 48.04 in (1220 mm) |
| Height Of Rails | 3.71 ft in (1130 mm) |
| Max Platform Weight Capacity | 1499.15 lb (680 kg) |
| Platform Inner Length | 131.89 in (3350 mm) |
| Lift Time | 33 sec |
| Lower Time | 35 sec |
| Max Working Height | 39.57 ft in (12060 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | DF752 Dual Fuel |
Operational
| Operating Weight | 8699.5 lb (3946 kg) |
| Fuel Capacity | 15.1 gal (57 L) |
| Hydraulic System Fluid Capacity | 23 gal (87 L) |
| Max Speed | 3.8 mph (6.1 km/h) |
| Tire Size | 12-16.5 NHS "outrigger" |
