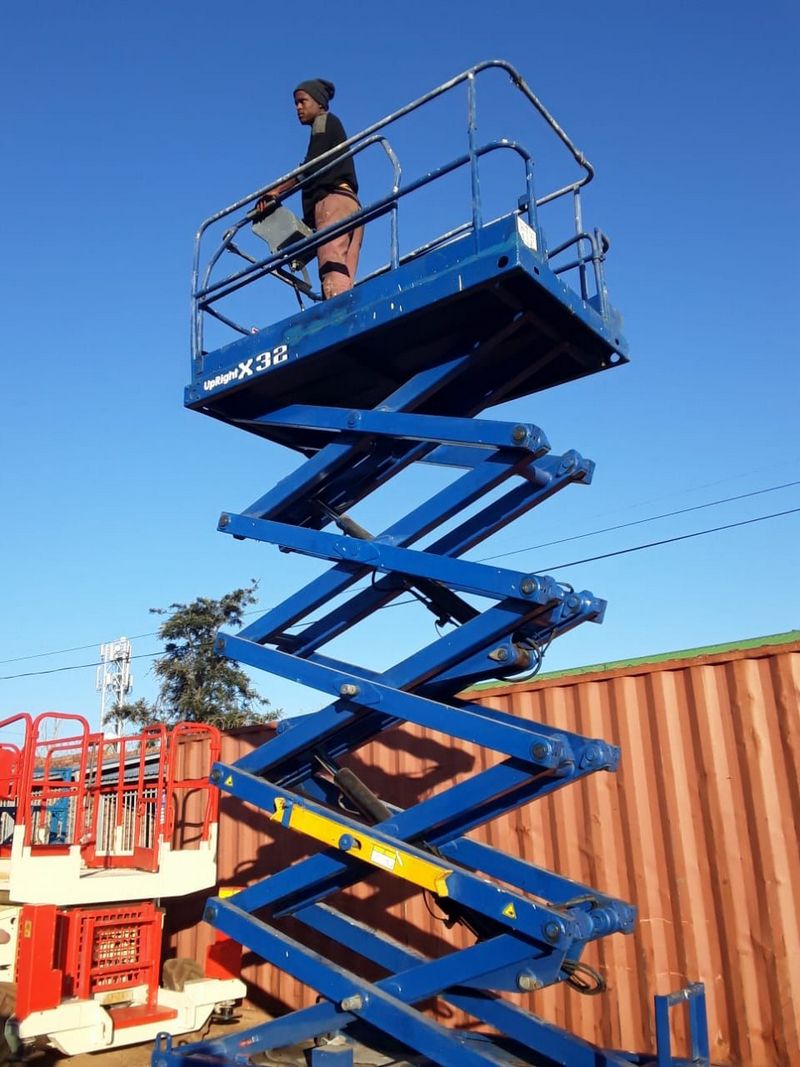

UpRight X32
Browse All UpRight or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 7.71 in (2350 mm) |
| Overall Width | 4.01 ft in (1220 mm) |
| Height W/ Rails | 7.39 ft in (2250 mm) |
| Ground Clearance | 3.51 in (89 mm) |
| Height W/O Rails | 6.17 ft in (1880 mm) |
Platform
| Max Platform Height | 31.99 ft in (9750 mm) |
| Platform Inner Width | 46.07 in (1170 mm) |
| Lift Time | 65 sec |
| Lower Time | 40 sec |
| Max Platform Weight Capacity | 749.58 lb (340 kg) |
| Max Working Height | 38.72 ft in (11800 mm) |
| Platform Inner Length | 125.99 in (3200 mm) |
Engine
| Engine Make | 0 |
| System Voltage | 24 V |
| Number Of Batteries | 4.0000 |
| Battery Amp Hours | 220.0000 |
| Charger Amps | 25 amps |
Operational
| Operating Weight | 5480.7 lb (2486 kg) |
| Max Speed | 2 mph (3.2 km/h) |
| Tire Size | 381mm dia |
| Tire Fill/Type | solid rubber / non-marking |
