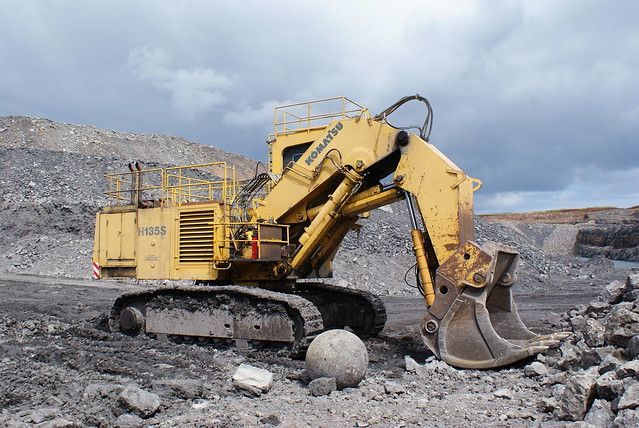

Komatsu H135S
Contents:
Dimensions
| Width Over Tracks | 16.77 ft in (5110 mm) |
| Length Of Track On Ground | 16.02 ft in (4880 mm) |
| Height To Top Of Cab | 20.45 ft in (6231 mm) |
| Tail Swing Radius | 16.21 ft in (4940 mm) |
| Ground Clearance | 30.6 in (777 mm) |
| Upper Structure Ground Clearance | 6.32 ft in (1924 mm) |
| Length Of Tracks | 21.17 ft in (6450 mm) |
Loading Shovel
| Max Dig Reach | 38.06 ft in (11600 mm) |
| Max Dump Height | 31.83 ft in (9700 mm) |
| Max Cutting Height | 44.3 ft in (13500 mm) |
| Max Dig Depth | 9.85 ft in (3000 mm) |
| Height To Top Of Boom - Shovel | 21.33 ft in (6500 mm) |
| Overall Length - Shovel | 35.77 ft in (10900 mm) |
Undercarriage
| Loading Shovel Shoe Width | 23.63 in (600 mm) |
| Track Gauge | 13.95 ft in (4250 mm) |
| Max Travel Speed | 1.5 mph (2.42 km/h) |
| Loading Shovel Operating Weight | 308647.15 lb (140000 kg) |
| Loading Shovel Ground Pressure | 29.3 psi (202.02 kPa) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2347 |
| Engine Model | VTA28-C-800 |
| Net Power | 728 hp (542.9 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbocharged |
| Displacement | 1709 cu in (28.1 L) |
Operational
| Fuel Capacity | 475.6 gal (1800 L) |
| Hydraulic System Fluid Capacity | 425.4 gal (1610 L) |
| Swing Speed | 6.2 rpm |
Buckets
| Reference Bucket Capacity | 12.5 yd3 (9.5 m3) |
| Minimum Bucket Capacity | 4 yd3 (3 m3) |
| Maximum Bucket Capacity | 12.5 yd3 (9.5 m3) |
