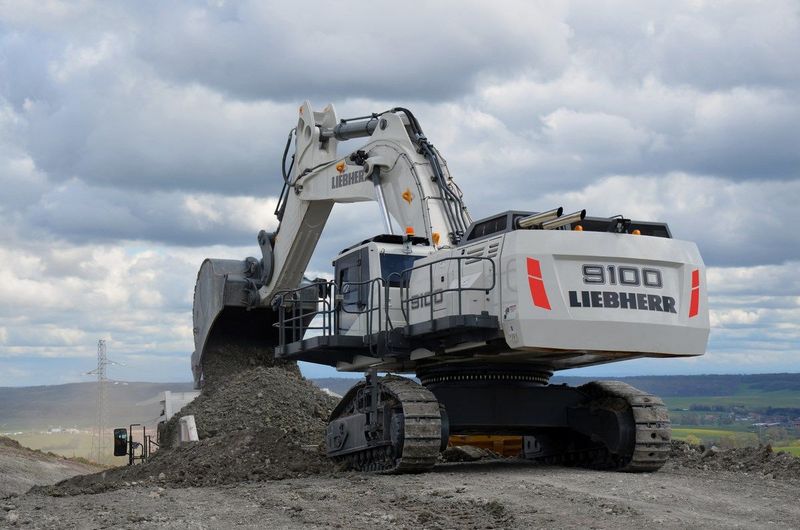

Liebherr R9100
Contents:
Boom/Stick Option (Hex) 1
| Max.Dumping Height | 28.38 ft in (8650 mm) |
| Stick Length | 10.5 ft in (3.2 m) |
| Ground Pressure | 24.4 psi (168.24 kPa) |
| Bucket Digging Force - Iso | 93295.71 lb (415 kN) |
| Maximum Reach At Ground Level | 42.66 ft in (13000 mm) |
| Max Digging Depth | 23.46 ft in (7150 mm) |
| Breakout Force - Iso | 125893 lb (560 kN) |
| Max. Teeth Height | 500 ft in (12700 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 7.60 m /24 ft 11 In |
Boom/Stick Option (Hex) 2
| Boom/Stick Option (Hex) 2 | Boom - 9.20 m/30 ft 2 in |
| Max.Dumping Height | 27.56 ft in (8400 mm) |
| Maximum Reach At Ground Level | 591.34 in (15020 mm) |
| Stick Length | 10.5 ft in (3.2 m) |
| Max. Teeth Height | 43.18 ft in (13160 mm) |
| Ground Pressure | 25.03 psi (172.58 kPa) |
| Breakout Force-Iso | 119148.73 lb (530 kN) |
| Max Digging Depth | 31.63 ft in (9640 mm) |
| Bucket Digging Force - Iso | 92171.66 lb (410 kN) |
Boom/Stick Option (Hex) 3
| Max. Crowd Length | 12.14 ft in (3.7 m) |
| Boom/Stick Option (Hex) 3 | Boom - 5.30 m /17 ft 4 in |
| Breakout Force-Iso | 131513.23 lb (585 kN) |
| Ground Pressure | 25.53 psi (176.03 kPa) |
| Max Bucket Opening Width | 6.57 ft in (2000 mm) |
| Max. Crowd Force | 158265.49 lb (704 kN) |
| Max. Crowd Force At Ground Level (Iso 6015) | 122520.87 lb (545 kN) |
| Max.Dumping Height | 24.94 ft in (7600 mm) |
| Maximum Reach At Ground Level | 35.11 ft in (10700 mm) |
| Stick Length | 12.14 ft in (3.7 m) |
Dimensions
| Ground Clearance | 31.97 in (812 mm) |
| Overall Width | 5031 mm |
| Wheelbase | 15.69 ft in (4780 mm) |
| Overall Height With Rops | 4114 mm |
| Track Width | 153.55 in (3.9 m) |
| Overall Length - Bucket Level On Ground | 611.42 in (15530 mm) |
Swing System
| Swing Gear | 2 Liebherr planetary reduction gears |
| Hydraulic Motors And Drives | 2 Liebherr axial piston motors |
| Swing Ring Teeth | Liebherr, sealed single race ball bearing swing ring, internal teeth |
| Swing Speed | 6 rpm |
Engine
| Starter | 22.6 hp (16.8 kw) |
| Cooling Method | Water-cooled, hydrostatic fan drive |
| Rated Engine Speed | 1800 rpm |
| Engine Model | Liebherr D9512 |
| Engine Type | V12 cylinder engine |
| Air Cleaner | Dry-type air cleaner with pre-cleaner, primary and safety elements, automatic dust discharge |
| Rated Power | 757.7 hp (565 kw) |
| Displacement | 1479.3 cu in (24.3 L) |
| Bore | 5.1 in (128 mm) |
| Stroke | 6.2 in (157 mm) |
| Alternator | 140 amps |
Capacities
| Fuel Tank | 390 gal (1476.4 L) |
| Hydraulic Tank | 264.2 gal (1000 L) |
| Hydraulic System | 369.9 gal (1400 L) |
Operational
| Standard Bucket Capacity – Sae | 9.2 yd3 (7 m3) |
| Shovel Capacity | 9.2 yd3 (7 m3) |
| Operating Weight - 6wd | 239999.7 lb (108862 kg) |
Electrical
| Voltage | 24 V |
| Batteries | 4 x 75 Ah / 12 V |
Hydraulic System
| Maximum System Pressure | 5076 psi (34997.8 kPa) |
| Pump Flow | 344.8 gal/min (1305 L/min) |
