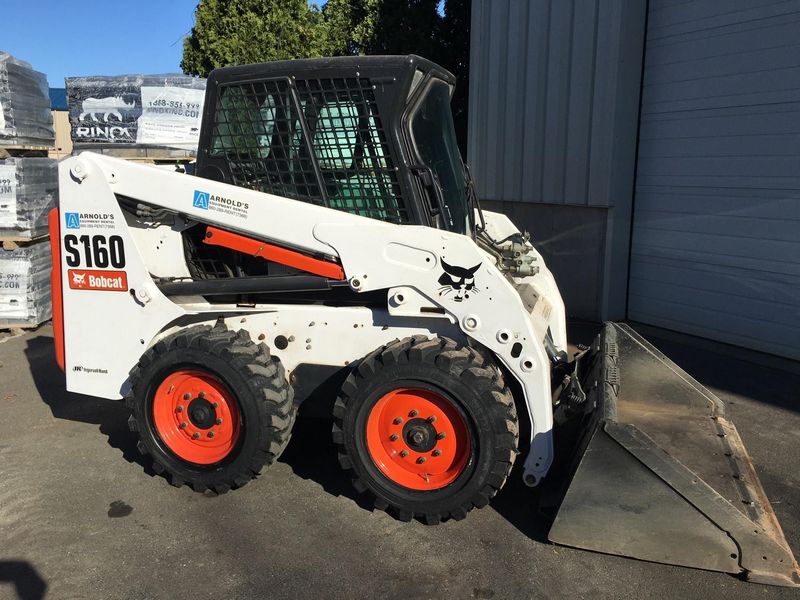

Bobcat S160
Browse All Bobcat or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.86 ft in (3310 mm) |
| Width Over Tires | 5.5 ft in (1676 mm) |
| Height To Top Of Cab | 6.36 ft in (1938 mm) |
| Wheelbase | 3.38 ft in (1030 mm) |
| Length W/O Bucket | 8.5 ft in (2588 mm) |
| Clearance At Max Lift And Dump | 7.58 ft in (2310 mm) |
| Reach At Max Lift And Dump | 18.11 in (459.74 mm) |
| Turning Radius From Center - Machine Rear | 82.4 in (2092.96 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2003-M-DI-T |
| Gross Power | 56 hp (41.8 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 122.1 cu in (2 L) |
Operational
| Operational Weight | 6115 lb (2773.8 kg) |
| Fuel Capacity | 24.1 gal (91 L) |
| Max Speed | 11.1 mph (17.9 km/h) |
| Operating Speed | 7.3 mph (11.8 km/h) |
Loader
| Operating Load Rating | 1600 lb (725.8 kg) |
| Tipping Angle | 3301 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Flow Capacity | 26.4 gal/min (100 L/min) |
| Relief Valve Pressure | 3300 psi (22752.7 kPa) |
