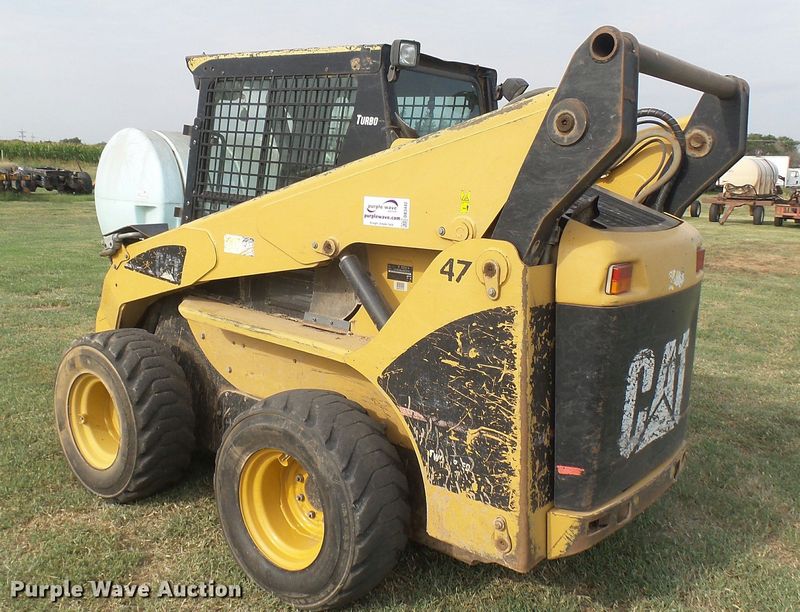

Caterpillar 268B
Browse All Caterpillar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.87 ft in (3616 mm) |
| Width Over Tires | 6.01 ft in (1829 mm) |
| Ground Clearance | 8 in (203.2 mm) |
| Height To Top Of Cab | 6.77 ft in (2063 mm) |
| Wheelbase | 4.03 ft in (1228 mm) |
| Length W/O Bucket | 9.53 ft in (2902 mm) |
| Clearance At Max Lift And Dump | 7.95 ft in (2421 mm) |
| Reach At Max Lift And Dump | 32.64 in (829 mm) |
| Length - Without Bucket | 114 in (2895.6 mm) |
| Maximum Reach - With Arms Parallel | 52 in (1320.8 mm) |
| Maximum Overall Height | 160 in (4064 mm) |
| Bucket Pin Height - Carry Position | 8.4 in (213.36 mm) |
| Bucket Pin Height - Maximum Lift | 10.59 ft in (0.27 m) |
| Bucket Pin Reach - Maximum Lift | 13.6 in (345.44 mm) |
| Bumper Overhang - Rear Axle | 41 in (1041.41 mm) |
| Clearance At Maximum Lift And Dump | 95 in (2413 mm) |
| Height - Top Of Cab | 6.92 ft in (0.18 m) |
| Length - With Bucket On Ground | 142 in (3606.8 mm) |
| Turn Radius From Center - Rear | 67 in (1701.8 mm) |
| Turning Radius From Center - Inc Bucket | 85.83 in (2180 mm) |
| Turning Radius From Center - Machine Rear | 66.78 in (1696 mm) |
| Vehicle Width Over Tires | 72 in (1828.8 mm) |
| Wheel Base | 4 ft in (0.11 m) |
| Reach - Maximum Lift/Dump | 33 in (838.2 mm) |
| Turn Radius From Center - Bucket | 86 in (2184.4 mm) |
| Turn Radius From Center - Coupler | 52 in (1320.8 mm) |
Operating Specifications
| Rated Operating Capacity With Optional Counterweight | 2750 lb (1247.38 kg) |
| Breakout Force - Lift Cylinder | 5191.88 lb (2355 kg) |
| Rated Operating Capacity | 2700 lb (1224.7 kg) |
| Tipping Load | 5612.96 lb (2546 kg) |
| Breakout Force - Tilt Cylinder | 5508 lb (2498.39 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | 3044C DIT |
| Gross Power | 82 hp (61.2 kw) |
| Net Power | 76.5 hp (57 kw) |
| Aspiration | turbocharged |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Gross Power - Sae J1995 | 82 hp (61.2 kw) |
| Engine Model | Cat 3044C DIT |
| Engine Power - Iso 14396 | 80 hp (59.7 kw) |
| Net Power - Eec 80/1269 | 77 hp (57.5 kw) |
| Net Power - Iso 9249 Eec | 77 hp (57.5 kw) |
| Net Power - Sae 1349 | 76 hp (56.7 kw) |
| Net Flywheel Power | 76 hp (56.7 kw) |
Operational
| Operational Weight | 7994 lb (3626 kg) |
| Fuel Capacity | 23.8 gal (90 L) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Engine Oil Fluid Capacity | 2.7 gal (10 L) |
| Hydraulic System Fluid Capacity | 14.1 gal (53 L) |
| Max Speed | 7.3 mph (11.6 km/h) |
| Chain Box Fluid Capacity - Each Side | 2.2 gal (8 L) |
| Tire Size | 12x16.5 10PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Power Train
| Travel Speed Forward | 7.2 mph (11.6 km/h) |
| Travel Speed Reverse | 7.2 mph (11.6 km/h) |
| Travel Speed Reverse - 2-Speed Option | 11 mph (17.8 km/h) |
| Travel Speed Forward - 2-Speed Option | 11 mph (17.8 km/h) |
Loader
| Breakout Force | 5507.2 lb (2498 kg) |
| Operating Load Rating | 2698.5 lb (1224 kg) |
| Tipping Angle | 5399.2 degrees |
Weights
| Operating Weight | 7995 lb (3626.5 kg) |
Hydraulic
| Pump Flow Capacity | 33.1 gal/min (125 L/min) |
| Relief Valve Pressure | 4061.1 psi (28000 kPa) |
Hydraulic System
| Hydraulic Power | 78.2 hp (58.3 kw) |
| Maximum Loader Hydraulic Flow | 33 gal/min |
| Maximum Loader Hydraulic Pressure | 4060 psi |
| Loader Hydraulic Pressure | 4061.06 psi |
| Loader Hydraulic Flow | 33.02 gal/min |
| Hydraulic Flow | High Flow XPS |
Service Refill Capacities
| Cooling System | 2.6 gal (9.9 L) |
| Fuel Tank | 23.8 gal (90.1 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 2.6 gal (9.9 L) |
| Hydraulic System | 14 gal (53 L) |
| Chain Box - Each Side | 2.1 gal (8 L) |
Cab
| Rops | SAE J1040 MAY94 and ISO3471:1994 |
| Fops | SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
| Fops Level Ii | SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional) |
