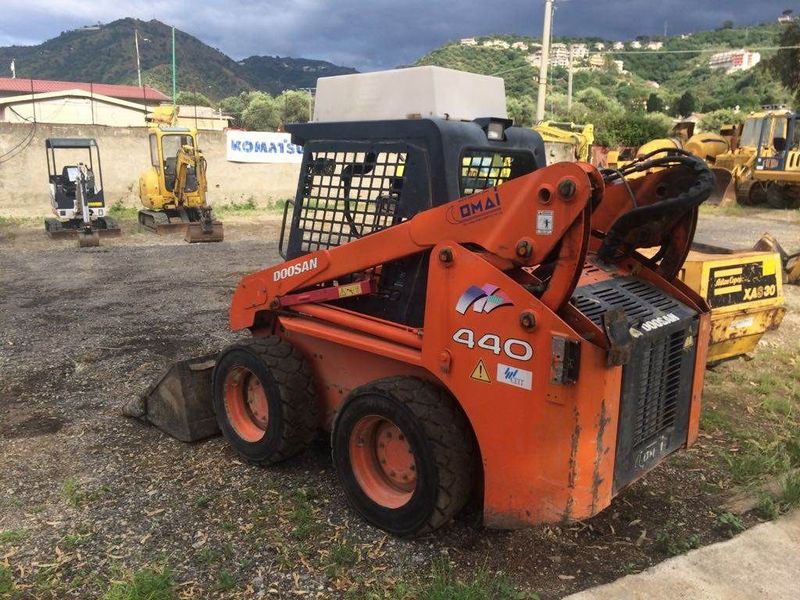

Doosan 440 Plus
Browse All Doosan or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.53 ft in (3208 mm) |
| Width Over Tires | 4.88 ft in (1486 mm) |
| Ground Clearance | 7.49 in (190 mm) |
| Height To Top Of Cab | 6.42 ft in (1954 mm) |
| Wheelbase | 3.53 ft in (1074.8 mm) |
| Length W/O Bucket | 8.28 ft in (2521 mm) |
| Clearance At Max Lift And Dump | 7.3 ft in (2224 mm) |
| Reach At Max Lift And Dump | 25.4 in (645 mm) |
| Turning Radius From Center - Machine Rear | 63.27 in (1607 mm) |
| Turning Radius From Center - Inc Bucket | 75.08 in (1907 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | A2300 |
| Net Power | 47 hp (35.1 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 139.8 cu in (2.3 L) |
Operational
| Operational Weight | 6133 lb (2781.9 kg) |
| Fuel Capacity | 14.3 gal (54 L) |
| Max Speed | 7.3 mph (11.8 km/h) |
| Tire Size | 10-16.5-8PR |
Loader
| Breakout Force | 2910 lb (1320 kg) |
| Operating Load Rating | 1973 lb (895 kg) |
| Tipping Angle | 3946 degrees |
Hydraulic
| Pump Type | gear type |
| Pump Flow Capacity | 15.8 gal/min (59.9 L/min) |
| Relief Valve Pressure | 3001.5 psi (20700 kPa) |
