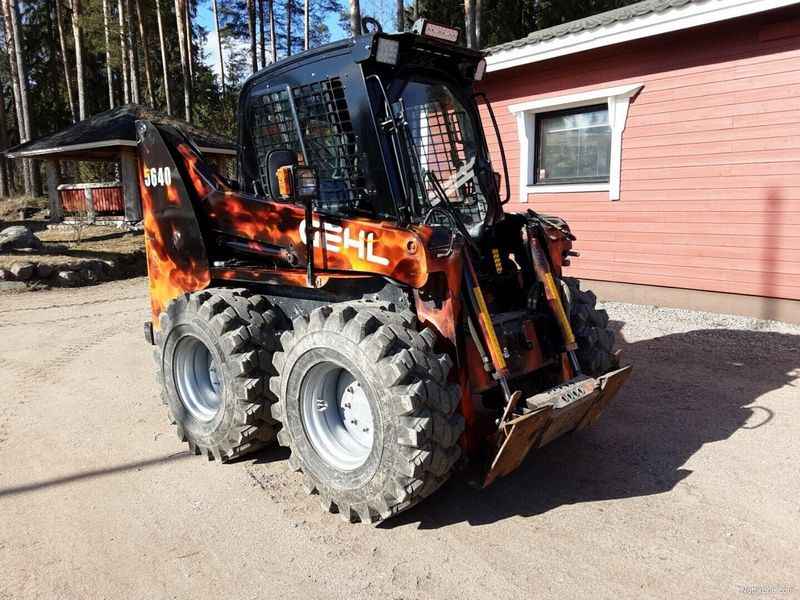

Gehl 5640E Turbo
Browse All Gehl or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.92 ft in (3327 mm) |
| Width Over Tires | 5.59 ft in (1702 mm) |
| Ground Clearance | 8 in (203 mm) |
| Height To Top Of Cab | 6.75 ft in (2057 mm) |
| Wheelbase | 3.55 ft in (1080 mm) |
| Length W/O Bucket | 7.96 ft in (2426 mm) |
| Clearance At Max Lift And Dump | 7.8 ft in (2375 mm) |
| Reach At Max Lift And Dump | 32.8 in (833 mm) |
| Turning Radius From Center - Machine Rear | 33.06 in (839.5 mm) |
| Turning Radius From Center - Inc Bucket | 41.01 in (1041.5 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | BF4M2011 |
| Net Power | 82 hp (61.2 kw) |
| Power Measured @ | 2500 rpm |
| Aspiration | turbocharged |
| Displacement | 190 cu in (3.2 L) |
Operational
| Operational Weight | 7380 lb (3347.6 kg) |
| Fuel Capacity | 19.1 gal (72 L) |
| Max Speed | 12.4 mph (19.8 km/h) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Tire Size | 12.00x16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Loader
| Operating Load Rating | 2200 lb (998 kg) |
| Tipping Angle | 4400 degrees |
Hydraulic
| Pump Flow Capacity | 23 gal/min (87 L/min) |
