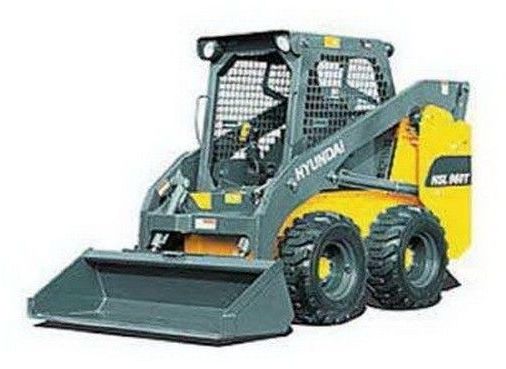

Hyundai HSL800T
Browse All Hyundai or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.61 ft in (3538 mm) |
| Width Over Tires | 5.67 ft in (1727 mm) |
| Ground Clearance | 8.75 in (222 mm) |
| Height To Top Of Cab | 6.92 ft in (2108 mm) |
| Wheelbase | 3.3 ft in (1003 mm) |
| Length W/O Bucket | 9.19 ft in (2801 mm) |
| Clearance At Max Lift And Dump | 9.24 ft in (2814 mm) |
| Reach At Max Lift And Dump | 29.49 in (749 mm) |
| Turning Radius From Center - Machine Rear | 65.52 in (1664 mm) |
| Turning Radius From Center - Inc Bucket | 82.52 in (2096 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | V2003T |
| Gross Power | 59.5 hp (44.4 kw) |
| Net Power | 56 hp (41.8 kw) |
| Power Measured @ | 2800 rpm |
Operational
| Operational Weight | 6999.7 lb (3175 kg) |
| Fuel Capacity | 19.3 gal (73 L) |
| Hydraulic System Fluid Capacity | 14.8 gal (56 L) |
| Max Speed | 7.8 mph (12.4 km/h) |
| Tire Size | 12.00X16.5 |
Loader
| Operating Load Rating | 1750.5 lb (794 kg) |
| Tipping Angle | 3496.6 degrees |
Hydraulic
| Pump Flow Capacity | 16.6 gal/min (62.8 L/min) |
| Relief Valve Pressure | 2400 psi (16547.5 kPa) |
